Tektronix P6209 4GHZ active probe w/accys as shown
Tektronix P6209 4GHz Active Probe with accessories

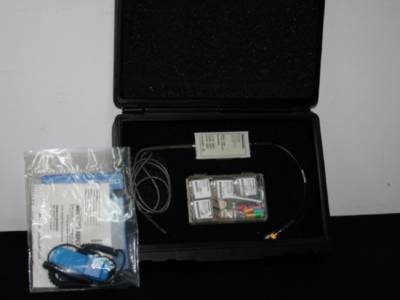

ITEM DESCRIPTIONPICTURE IS UNIT ON SALE
The Tekronix P6209 comes with everything shown in the picture.
Bandwidth DC to 4.0GHz @ -3dBRise-time <120ps (guaranteed, 20 C to 30 C)Dynamic Range 2.0VAttenuation 5xInput Resistance 20 k DC Offset Range 5VdcInput Capacitance <1pFMax Voltage (Nondestruct 30V (DC plus peak AC)Cable Length 1.37m (includes SMA cable)Output Load Requirement 50 Linearity 0.1% at DCutput Offset Probe Only: 7.5mV or less (20 C to 30 C)DC Offset Drift 150uV or less (probe only)
