> New samsung 12VDC power supply oem model PSPL430201A
New samsung 12VDC power supply oem model PSPL430201A
This is a NEW OEM Samsung power supply
Input Voltage: 100-120VAC ~ 1A, 50-60Hz
(Standard Grounded and filtered AC socket is attached.)
Output Voltage: +5VDC/5A - +12VDC/1.5A
Output Voltage Wires: RED= +5VDC, YELLOW= +12VDC, BLACK= Ground

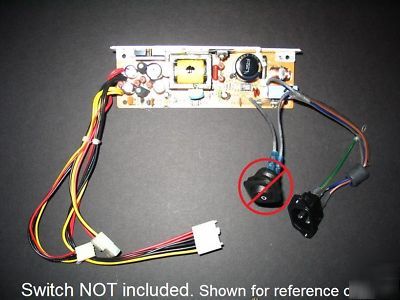

(Assorted Molex Connectors attached, see picture)
(NOTE: the switch is not included. It is shown to reference where it connects.
The PS has a pot on the circuit board that adjusts the output voltages.
from 6VDC to 13.8VDC YELLOW wire
You can see it in the bottom picture. (orange pot marked 105)
Contact me if you have any questions or send best offer for more than one.
