New 225 ton x 12' primeline hydraulic 20 hp in 1999
14824 ROCKBRIDGE ROAD, LITTLE ROCK, AR 72206
(***) 897-1110 PHONE (***) 897-4090 FAX
Visit our web site at http://
E-mail at sales@ smfmachinetools.com

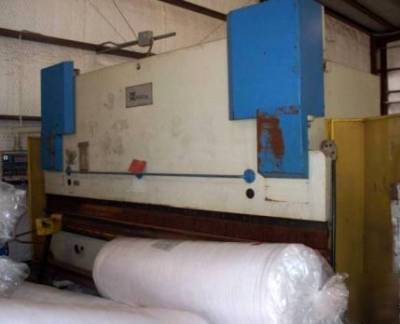

ONE USED PRIMELINE HYDRAULIC PRESS BRAKE
Bending Length-Overall 145-11/16
Distance between Housings 122
Speed of Ram (Inches per Second)
Hydraulic Oil Capacity 37 Gallons
Dimensions (L x W x H) 149 x 59 x 114
Machine Features/Standard Equipment:
Down stroking moving beam (ram)
Fully hydraulic design and operation, utilizing two hydraulic cylinders
Cylinder pistons ground, hard-chrome plated and ground a second time for precision and maximum life
Adjustable working pressure and pressure regulating gauge
Torsion bar for ram parallelism
Infinitely adjustable mechanical depth stops, push-button operated with electronic digital readout
Two-speed ram advance (hi/low)
A movable pedestal with two-hand control, foot control, and emergency stop control for machine operation
Safety limit switches for minimum and maximum settings of travel in power ram adjustment and power front operated backgauge
Programmable power backgauge with aluminum rail bar for easy, smooth operation
Manual R axis (height of back stops) / Manual Z axis (side-to-side adjustment of backgauge stops)
Elgo 200 step programmable control for X axis position (backgauge front to back for flange dimensions) and for Y axis position (ram depth for bend angle position)
4- way die holder and 4-way die
Delivery Stock, subject to prior sale
