Allen bradley 1756-enbt /a 1756ENBT ethernet/ip bridge
Rockwell Automation > PLC & HMI > I/O Products > ControlLogix > 1756-ENBT/A
Allen Bradley 1756-ENBT ControlLogix EtherNet/IP 10/100 Bridge Module - Twisted Pair, Series A
Allen Bradley 1756-ENBT ControlLogix EtherNet/IP Bridge Module, Communication rate: 10/100 Mbps; Connections: Each module supports a maximum of 64 TCP/IP connections and 128 Logix connections (I/O and information); Current draw @ 5.1V DC: 700 mA; Current draw @ 24V DC: 3 mA; Power dissipation: 3.65 W; Ports: 1 Ethernet RJ45 Category 5; Ethernet cable: 802.3 compliant shielded or unshielded twisted pair; Isolation voltage: 30 V (continuous), Basic Insulation Type Tested at 707V DC for 60 s.
The 1756-ENBT is an enhanced version of the 1756-ENET module and works either as an interface for a ControlLogix controller to communicate with other devices over an EtherNet/IP network or as an adapter for 1756 I/O modules on an EtherNet/IP network. The 1756ENBT module communicates at a faster rate (10/100 Mbps full duplex vs. 10 Mbps half-duplex), includes more on-board memory, and is backward compatible replacing 1756-ENET modules without the need to modify current program. The module is web-enabled.

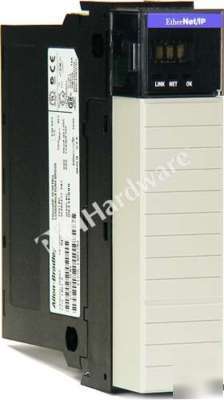

One Allen Bradley 1756-ENBT Series A, ControlLogix EtherNet/IP 10/100 Bridge Module - Twisted Pair, in excellent working and cosmetic condition.
The unit is Series A, F/W Rev. 4.003, Manufactured in 11/07.
UPP (Used in a PLCHardware.com Packaging)
