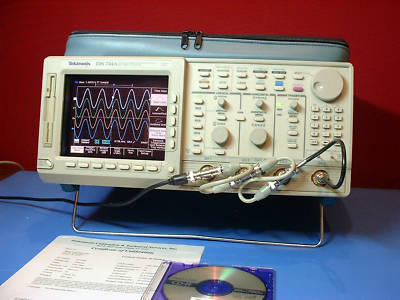

Tektronix TDS744A 4CH digitizing oscilloscope 6 probes
Discount Sale!! Save Thousands!!
500 MHz, 2 GS/sec Four Channel Color Digitizing Oscilloscope
* BIN purchase includes 4-P6139A and 2-P6243 probes
* 90 day warranty (extended warranties available, ask for price)
* NIST-traceable calibration
* 05 - TV Trigger Option for HDTV
* 13 - RS232 and Centronics Interface
* 1F - 3.5" Floppy Drive (MS-DOS format compatible)
* 1M - 500K/1 channel, 50K/4 channels
* 2F - Advanced Waveform Math Option (includes FFT w/ various window functions)
* Top-mounted accessory pouch
* Complete set of Tektronix manuals on CD
* NIST-traceable Calibration Certificate of Compliance and Test Data
* 5-day Right-of-Refusal/Right-of-Return (RoR)
* 90-day non-DOA hardware repair warranty
Optional (included with BIN purchase) probes and probe accessories available (at additional cost if not BIN- a la carte):
* Tek P6139A, 500 MHz probes w/ high-speed probing accessories, $150 each, $600 for set of 4
* Tek P6243, 1 GHz bandwidth, active SMT probe w/ accessories, $250 each, $500 for set of 2
The TDS744A represents the next generation of digitizing scope performance. This versatile general-purpose instrument introduces Tek's new InstaVuTM acquisition feature and sets a benchmark in waveform capture rate for DSOs. The TDS744A can display more than 400,000 acquisitions per second - a rate 2,500 times faster than the most advanced DSOs available.
Other TDS 744A features include advanced triggering, graphical user interface, high-speed signal processing, complementary probing, and sophisticated documentation capability. With its long record length and high bandwidth, the TDS 744A is an ideal complement to the 2000 Series AWGs for wireless communications testing.
This unit comes with a 5-day right-of-refusal/right-of-return (RoR) and a 90 day non-DOA hardware repair warranty by the seller. Also included is a CD with all pertinent documentation including: user manual, programmers manual, reference manual, service manual, and programming examples. The unit has been reconditioned and thoroughly checked out by a qualified service technician and has a NIST traceable calibration by Instrument Calibration and Technical Services, Inc. (http:// ). The unit passes the self-test diagnostics, signal path compensation, and probe calibration. All four channels work perfectly. The TDS744A has the following product features:
* 3.5" floppy drive for waveform hardcopy, capture, and recall (Option: 1F)
* 500 MHz maximum analog bandwidth
* 2 Gigasample/second digitizing (sampling) rate
* Up to 100 Gigasample/second Equivalent Time Sampling
* 1 Meg ohm or 50 ohm input impedance
* Vertical Sensitivity: 1 mV/div to 10 V/div
* 8 bits vertical resolution
* Bandwidth: selectable 500 MHz (FULL), 100 MHz, 20 MHz
* Sweep speed: 5 s/div to 500 ps/div
* Acquisition modes: Sample, Peak Detect, Hi Res, Envelope, Average
* Trigger types: edge, pulse or logic, video (option 05)
* Edge trigger coupling: AC, DC, GND, HF Reject, LF Reject, Noise reject
* Trigger inputs: CH1, CH2, CH3, CH4, AC line, Auxiliary (rear panel BNC)
* Record length: up to 500,000 samples (Option: 1M)
* Time Base(s): Main, Delayed
* 25 Automatic Measurements: (display up to four at one time) Period, Frequency, Positive Width, Negative Width, Rise Time, Fall Time, Positive Duty Cycle, Negative Duty Cycle, Delay, Phase, Burst Width, High, Low, Max, Min, Peak-to-Peak, Amplitude, Positive Overshoot, Negative Overshoot, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area
* Cursor Modes: Independent, Tracking
* Cursor Measurements: Time/Frequency/Amplitude
* Waveform Math: Invert a single waveform and add, subtract, multiply, and divide two waveforms
* Advanced math option: inversion, integration, differentiation, and FFT spectral analysis of selected channel (Option: 2F)
* Capture and display one to four reference waveforms for comparisons and waveform math
* Intuitive graphic icon operation blended with the familiarity of traditional horizontal and vertical knobs
* Full GPIB software programmability via GPIB IEEE STD 488 Port
* RS232 and Centronics Interface (Option: 13)
* On-line help at the touch of a button
* 90-250 Vac; 47-63 Hz operation
* Weight: 27 lb (37 lb packed)
* Size: 193 mm (7.6 in) Height x 445 mm (17.5 in) Width x 432 mm (17.0 in) Depth
1. Tektronix Model TDS744A 4-Channel Color Digitizing Oscilloscope w/ Options: 05 13 1F 1M 2F
2. Tektronix documentation (on CD):
* Miscellaneous application notes and software programming utilities (source code and executables)
* 90 day non-DOA hardware repair warranty by the seller
* NIST-traceable calibration w/ Certificate of Compliance and test data
* BIN purchase includes 4-P6139A passive probes
* BIN purchase includes 2-P6243 active probes
Note: All probes and probe accessories are included with BIN purchase otherwise are optional and additional cost items. Add cost at checkout for what you need or let us know and we can add to your invoice.
* Tektronix P6139A 500 MHz bandwidth passive probes with ground leads, alligator clips, and hook tips (high-speed probe accessories included), $150 each, $600 for a set of 4 probes.
* Tektronix P6243 active surface mount probe, 1 GHz bandwidth w/ SMT probe accessories, $250 each, $500 for set of two probes.
Right-of-Refusal/Right-of-Return (RoR)
Signal Path Compensation Internal Calibration:
InstaVu mode showing intermittent signal capture on channel 2:
FFT (bottom signal trace) of channel 1 w/ 10 MHz sinusoidal input signal:
Video triggering option 05 on NTSC signal:
Please NOTE: ALL PROBES PICTURED ARE AVAILABLE AT ADDITIONAL COST- A LA CARTE
Included with BIN purchase only
