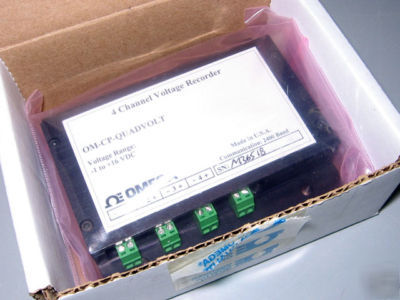

Omega om-cp-quadvolt 4 channel datalogger voltage
OMEGA OM-CP-QUADVOLT 4 CHANNEL DATALOGGER VOLTAGE
The OM-CP-QUADVOLT are low cost, high resolution, miniature battery powered, stand-alone voltage input dataloggers. In addition, the OM-CP-QUADVOLT allows the user to store user defined engineering units into the device as well as scale factors and offset values. This enables the user to easily linearize and scale any transducer that provides a voltage to any user required units automatically. This all-in-one compact, portable, easy-to- use device will measure and record up to 32,768 voltage measurements per channel.
The OM-CP-QUADVOLT is a major leap forward in both size and performance. Its real time clock ensures that all data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. Its small size allows it to fit almost anywhere. Data retrieval is simple. Plug it into an empty COM port and our easy to use software does the rest. The software converts your PC into a real time strip chart recorder. Data can be printed in graphical or tabular format and can be exported to a text or Microsoft Excel file.
* Nominal Input Range: 0 to 15 V
* Measurement Range: -1.0 to 16.0 V
* Overload Protection: +/1 30 V
* Memory: 32,768 readings/channel
* Input Connection: Removable screw terminal
* Calibration Date: Automatically recorded within device to alert user when calibration is required
* Recording Interval: 1 second to 12 hours
* Real Time Recording: Device may be used with PC to monitor and record data in real time
* Battery Life: 1 year typical
* Time Accuracy: 1 minute per month at 20 C
