> 14" accura tilt arbor cabinet sliding table saw 02214
14" accura tilt arbor cabinet sliding table saw 02214
14" Tilt Arbor Cab. Saw B-Type Fence
14" super duty high production cabinet saw's extra heavy cast iron construction makes this a precision , productive machine.
Table measures 48" x 38" with solid cast iron wing extensions and is highly ground & polished for ease of feed.
Saw arbor runs on 3 sealed ball bearings and features 1 piece heavy duty construction.
Large hand wheels with positive locks for wasy adjustments of height or tilt of blade.
7.5 HP, 220 volt, 3 phase motor (or optional 5 HP/1Ph) with magnetic starter runs at 3850 RPM.
1" diameter arbor, triple v-belt drive, hinged motor cover all standard.
Heavy duty gage 1 piece welded steel cabinet with dust collection
Precision b-type fence is cam lever style and locks on the front assuring parallelism.
50" rip capacity to right of blade. 5" max. depth of cut at 90 degrees.

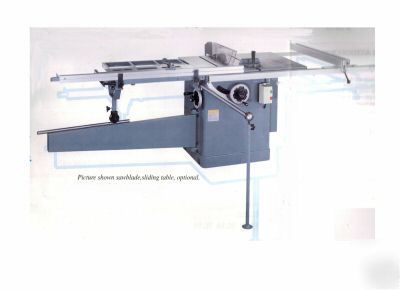

Model shown with optional 4' x 8' capacity specially designed sliding table (#ASTA-408) which swings for angle cuts and slides on roller bearings and also stops built in.
Includes deluxe hold down assembly.
