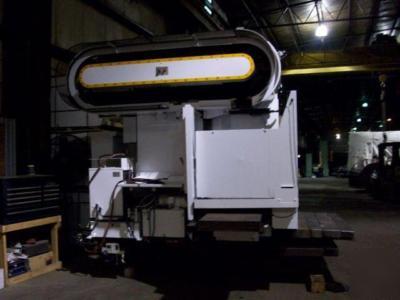

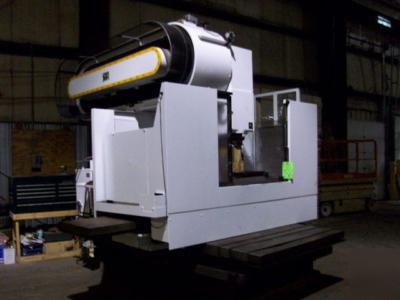

Mitsubishi m-V65C cnc vertical machining center
MITSUBISHI M-V65C THREE AXIS VERTICAL MACHINING CENTER
TABLE WORKING AREA - 65" X 27.6"
T-SLOT - 3.9" BETWEEN CENTERS 5 T-SLOTS ON TABLE
T-SLOT DIMENSIONS - 30MM X 12MM
SPLASH GUARD INSIDE DIMENSION - 96.5" X 36.6"
Z-AXIS TRAVEL FROM SPINDLE END TO TABLE TOP - 7.9" - 33.5"
X,Y,Z CUTTING FEEDRATES - 0.04 - 157.5 IPM
X-AXIS THRUST LOADING CAPACITY - 2,204 LBS
Y-AXIS THRUST LOADING CAPACITY - 2,204 LBS
Z-AXIS THRUST LOADING CAPACITY - 4,409 LBS
STANDARD HIGH SPEED - 20 HP 15/30 MIN
MACHINE POWER REQUIREMENTS - 220VAC/3/60
COMPRESSED AIR REQUIREMENTS - 6.3 CUBIC FEET PER MINUTE
MACHINE DIMENSIONS - 177.6" X 182.5"
HYDRAULIC UNIT CAPACITY - 10.6 GALLONS
COOLANT TANK CAPACITY - 52.8 GALLONS
