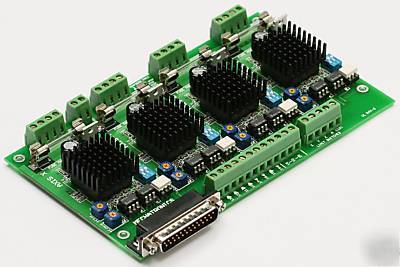

cnc 4 axis stepper motor driver controller for router
TOP QUALITY NEW 4 AXIS STEPPER MOTOR DRIVER, THIS CAN MOVE STEPPER MOTOR, JUST PLUG IN TO YOUR PC PARALLEL PORT AND PLUG IN A POWER SUPPLY
Made with Top Surface Mount Technology
Two phase bipolar (PWM Technology) this board doesn't need any external resistor for current motor adjustment.
Resolution (Full step, 1/2 step, 1/4 step, 1/8 step) selectable via dip switch for each axis, also, you can get a resolution of 1600 steps per 360 revolution with a conventional 200 steps motor, Imagine the fine movement that you will get!
2.5A motor current capacity per phase, in every axis
Individual axis enable/disable, via optocoupler input terminal (can be used as limit switch)
Full Adjustable stepper motor current via potentiometer on board
DB25 MALE connector on board for PC parallel port
All inputs signals are optocoupled for PC parallel port protection
Full access to all unused DB25 pins connector via terminal block, easy connection for prototyping work
24VDC @ 2-to-6 amp power supply required, 12VDC as minimum, 32VCD as maximum
Individual heat sink per axis
4 Wire, 6 Wire and 8 Wire (NEMA 17, NEMA 23, NEMA 34) Bipolar or Unipolar stepper motors can be used with 3 axis drive
Fuse integrated for electrical protection
Optocoupler protect your PC parallel port isolating of the board.
This new model is made using Surface Mount Technology, it reduces the PCB size, is better for your applications.
Individual heat sink per axis.
Every IC driver and optocoupler are mounted in socket, you can replace them if they're damaged in just 5 minutes!.
The motor current is adjusted with the potentiometers on board.
You can configurate the stepper resolution with the Dip Switch on board, also, the configuration table is printed on board.
Fuse integrated per axis, as electrical protection. This fuse protect the printed circuit board tracks in case of short circuit.
DB25 MALE connector, ideal for your PC parallel port.
Enable switch per axis and breakout for unused DB25 pins, ideal for prototyping work.
I TESTED THIS DRIVER BOARD USING KCAM SOFTWARE VER. 4.0 /kcam
KCam 4 Router/Mill software is designed to run low cost hobby CNC equipment. Program your paths using the built in G-code editor or import DXF, NC and PLT files. Create signs and plates using your CAD software and import your work into KCam
YOU CAN DOWNLOAD FULL OPERATE DEMO VERSION AND RUN THE STEPPER SYSTEM
YES, THE BOARD WORKS WITH MACH2, MACH3 AND ANY SOFTWARE THAT SEND DIRECTION AND STEP SIGNALS THROUGH PARALLEL PORT!
YOU CAN DOWNLOAD OPERATE DEMO VERSION
! DRIVER BOARD MANUAL AVAILABLE HERE
http:// /web/download/Manual4Axis(NEW).pdf
YOU CAN SEE THE 3 AXIS SYSTEM WORKING VIDEO HERE !
http://video.google.es/videoplay?docid=-5281796970250102073&q=3axisdrive
PLEASE NOTE ALL DRIVER BOARD ARE NEW, THAT IS THE REASON WHY RETURNS AND/OR REFUNDS ARE NOT ACCEPTED. THIS GUARANTEES YOU WILL RECEIVE AN UNUSED FULL TEST NEW BOARD
