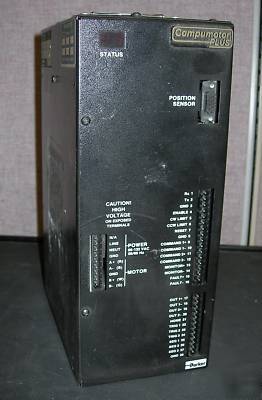

Parker compumotor plus cph-drive motor driver
The Parker Compumotor Plus Series Drives are a powerful, stand-alone, motion control devices. They provide users with an indexer and driver in one package (CPLX and CPHX). A simple RS-232C communications interface allows users to implement Compumotor Plus' powerful command language with minimal setup and preparation. The system's ability to operate up to 16 Compumotor Plus Drives in a daisy chain configuration, from one RS-232C device, further simplifies the Compumotor Plus' implementation in more complex applications. The Compumotor Plus system provides high accelerations (up to 10 times higher than open-loop stepper systems) and high torques in each frame size. The torque profiles have been chosen to provide high torque's at low to moderate speeds. This makes the Compumotor Plus system ideal for point-to-point positioning applications where increased throughput is important.Since the Compumotor Plus system runs closed loop, current is only produced when torque demands require it. Consequently, the Compumotor Plus system runs much cooler than comparable open-loop steppers. This can be important in applications where motor heating is a factor (such as stage drives). Product Family: CPL57-120, CPL57 120, CPL57120, CPLX57-120, CPLX57 120, CPLX57120, CPL83-150, CPL83 150, CPL83150, CPLX83-150, CPLX83 150, CPLX83150, CPH83-150, CPH83 150, CPH83150, CPHX83-150, CPHX83 150, CPHX83150, CPH106-220, CPH106 220, CPH106-220, CPHX106-220, CPHX106 220, CPHX106-220
Digital Tuning Via Pushbuttons or a RS-232C Interface
Velocity Monitor Output Provides Real-Time Performance Information
Two-Digit LED Diagnostic Display
User-Selectable Resolution 200 25,600 Steps/Rev Item is used but in good physical condition.
