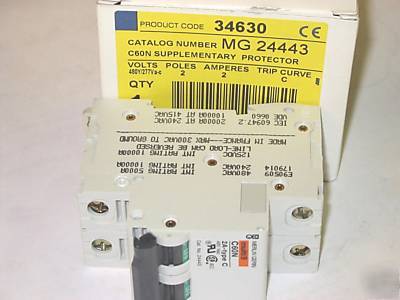

New MG24443 square d merlin gerin C60N 2A c 480V MULTI9
MG24443 SQUARE D MERLIN GERIN C60N 2A C 480V MULTI9
240/415/440/480 STAR/277 VAC, 125 VDC;
2 AMPERE; INTERRUPTING RATING 10000 AMPERE AT 240 VAC/125 VDC,
5000 AMPERE AT 480 STAR/277 VAC (UL);
20000 AMPERE AT 240 VAC, 10000 AMPERE AT 415 VAC/125 VDC,
TRIP SETTING 7 TO 10 X RATED CURRENT AMPERE;
WIRE SIZE 18 TO 4 AWG; BOX LUG TERMINAL;
35 MM DIN RAIL MOUNTING; SIZE 1.42 INCH W X 2.98 INCH D X 3.19 INCH H;
APPROVAL UL 1077, CSA 22.2, CE; MULTI [T]
BRAND; MG MODEL; APPLICABLE STANDARD IEC 947-2, VDE
