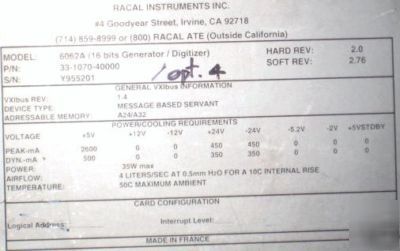

Racal 6062A 33-1070-40000 16-bit generator / digitizer
* Part #: 33-1070-40000 (331070-40000) (33-107040000) (33107040000)
* Description: Sixteen Bit Generator / Digitizer; 4-Channel Analog Input/4 Channel Analog Output Module
8-Channel A/D and D/A Module Model 6062
* Unique Combination of Digitizer and Waveform Generator
* Message and Pseudo-Register Based Control
* Up to Eight Channels in a Single-Slot with 16-bit Resolution
* Sample Rate with Options to 250 kS/s(A/D) or 2.5 MS/s(D/A)
* 64 k-point Sample Memory Per Channel (Optional 512 k-point memory)
* Four Built-In Waveforms: Sine, Square, Triangle, and Ramp

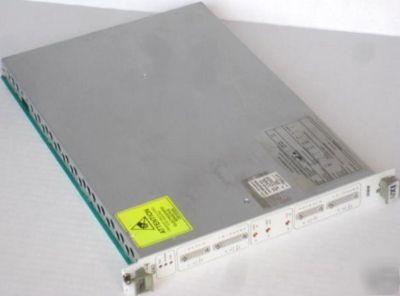

The Racal 6062 VXIbus Precision A/D and D/A module provides versatility, configurability, and precision in a single-slot, C-sized module. The unique design of the 6062 allows the configuration of a 4- or 8-channel instrument with mixed A/D and D/A inputs and outputs, independently or synchronously triggered.
High-Speed and Ease-of-Use - The 6062 can be programmed using SCPI messages. It also can be controlled at the pseudoregister level, providing response times of several microseconds for high-speed system throughput.
Independent Timing - Racal s unique multi-timer design allows independent control of each channel, providing versatility and flexibility. The 16-bit precision I/O, configurability options and multitimer design provide the 6062 with the capabilities necessary to perform high-performance data acquisition and control.
Versatile Memory Configurations - The 6062 s memory configurations allow it to be used in a wide variety of applications. Each channel has enough memory to store 64 k-points of data. The extended memory option enables the 6062 to be configured with 576 k-points behind a single channel or 128 k-points each for four channels. This, coupled with 2- or 4-wire capability on the D/A and differential or single-ended inputs on the A/D, provides a unique combination not found on any other product.
For driver updates, please refer to . PRODUCT INFORMATION Racal Instruments http:// 8-Channel A/D and D/A Module Model 6062
For further information, please visit the online brochure at http:// /pdf/6062.pdf
