New andrew heliax F4A coax 1/2" cable, din connectors

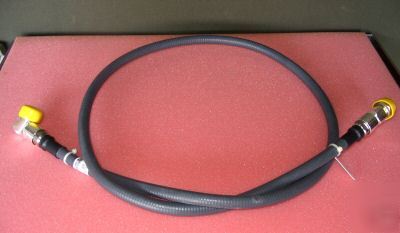

NEW Andrew Heliax FSJ4RN-50B jumper with 4.1-9.5 DIN male connectors
FSJ4RN-50B Andrew Fire Retardant 1/2" Super Flex coaxial cable in 2, 4, 5, 6 or 7 foot lengths. Email the length you need.

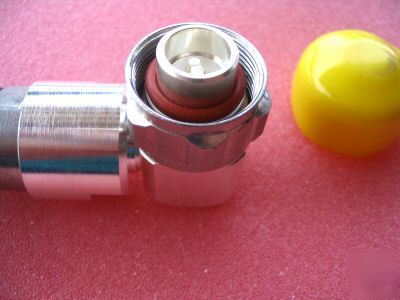

One end: 4.1/9.5 Small DIN Male Angled - Andrew F4-PKR (or like)

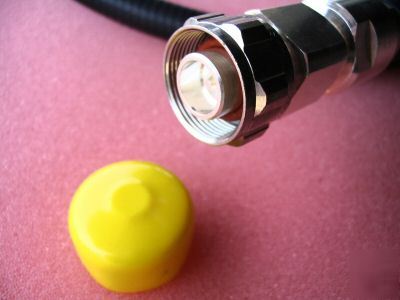

One end: 4.1/9.5 Small DIN Male Straight - Andrew F4-PKM (or like)
These are the lengths I have: 2 ft., 4 ft., 5 ft, 6 ft. and 7 ft. Specify which lengths you need.
(The 6 ft length has both DIN connectors (PKR) angled and they are manufactured by Huber + Suhner)
Electrical Specifications for Andrew FSJ4RN-50B cable
* Manufacturer: Andrew Heliax
* Coaxial Dielectric, flexible, corrugated
* Inner Conductor: Copper Clad Solid Aluminum
* Dielectric: Polyethylene Foam
* Outer Conductor: Corrugated Solid Copper Tube
* Jacket: Polyethylene, black, UV Resistant, Fire Retardant
* Inductance: 0.205 H/m; 0.063 H/ft
* Capacitance: 82.7 pF/m; 25 pF/ft
* Resistance: Inner Conductor DC: 2.69 /1000m; 0.820 /kft
Outer Conductor DC: 3.28 /1000m; 1.000 /kft
* Operating Voltage: 1.27 KVrms
* Peak Power Rating: 15.6 kW
* Operating temperature range: -40 to +80 C (-40 to +176 )
* Jacket Spark Test Voltage (rms): 5000V
* Insulation Resistance: 100,000 MOhm
Factory terminated 4.1/9.5 Small DIN Type Male connectors one angled and one straight
* 4.1/9.5 Small DIN Male Straight, plated, crimped; Andrew PKM or like
* 4.1/9.5 Small DIN Male Right Angled, plated, crimped, Andrew PKR or like
* Interface Frequency Max: 11 GHz
* Frequency Range: 0 to 2.5 GHz
