Pc 150MSA/s 60MHZ usb digital storage oscilloscope 2150
PC 150MSa/s 60MHz USB digital storage oscilloscope 2150
Click the pictures below to enlarge
* USB PORT , No Power Cord Needed
* Small size (mm):187(L)x100(W)x33(H) , easy to carry
* Software support: Windows98/ME/2000/XP/VISTA
* 60MHz bandwidth, 150MHz real-time sampling
* This oscilloscope can save waveform in the following formats: text file, jpg/bmp graphic file, MS excle/word file
Real-time sampling: 75MS/s using one channel, 150MS/s using two channels
10mV-5V/div @ x1 probe(10mV,20mV,50mV,100mV,200mV,500mV,1V,2V,5V/div1,2,5 sequence)
35Vpk(DC + peak AC < 10 KHz, without external attenuation)
4ns/div - 1h/div(4ns,10ns,20ns,40ns,100ns,200ns,400ns,1us,2us,4us,10us,20us,40us,100us,
200us,400us,1ms,2ms,4ms,10ms,20ms,40ms,100ms,200ms,400ms,1s,2s,4s,
10s,20s,40s,10m,20m,40m,1h/div 1-2-4 sequence)
Realtime sampling:4ns/div - 400ms/div
Edge trigger: Rising edge, falling edge
Vp-p, Vmax, Vnin, Vmean, Vrms, Vamp, Vhigh, Vlow,
positive overshoot, negative overshoot, cycle mean,
cycle rms, period, frequency, positive pulse width,
negative pulse width, rise time(10%-90%),
fall time(10%-90%),positive duty cycle, negative duty cycle
Time/frequency difference, voltage difference Frequency only in FFT mode
Addition, Subtraction, Multiplication, Division
Rectangular, Hanning, Hamming, Blackman Window
Universal Serial Bus(USB2.0,1.0)
No external power source required.

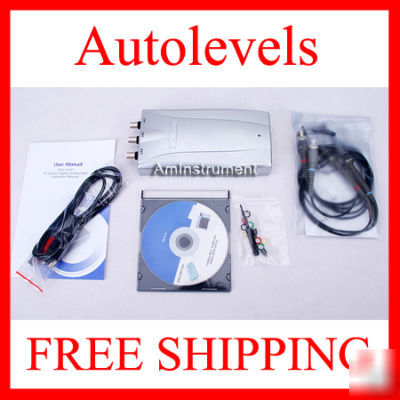

* 60M probe X 2:High frequency probe (1:1, 1:10)
* DSO2150 Software package
* 1 Operating Manual in English
* PC USB Adapter cable :Link DSO2150 oscilloscope with PC USB Interface
* If you are not pleased with your purchase, we'll be happy to make an exchange or refund the product price (less our actual S&H charge) within seven (7) days of your purchase. Please email us for a RMA # before you send your order back. For detail return procedures, please check our Return Instruction below.
* Returns Must Be Coordinated - Contact Autolevels via email for a return authorization number (RMA#). Items returned without an RMA# will be returned to the sender COD.
