> Anritsu MP1763C w/ opt 01, 03 pulse pattern generator

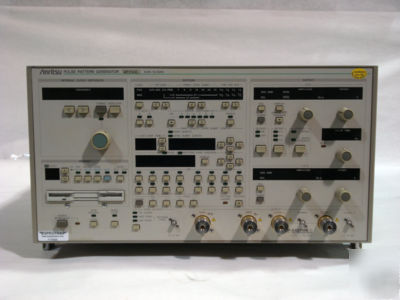

Anritsu MP1763C w/ opt 01, 03 pulse pattern generator
Description: Pulse PATTERN Generator
Anritsu MP1763B - Pulse PATTERN Generator features: Anritsu MP1763C Specifications:
Can be set in units of 1 kHz over the range from 50 MHz to 12.5
1/4 Data and Clock output (Option 03)
8-Mbit programmable pattern (can set six STM-64 frames)
PRBS pattern from 27 1 to 231 1 selectable and its mark ratio
The 1/64 clock or pattern SYNC selectable.
The trigger position variable for the pattern SYNC
DATA/DATA complementary output with back termination
CLOCK 1/CLOCK 1, CLOCK 2 (3 systems)
CLOCK 1/CLOCK 1 with back termination
(changeable to 1/4 speed output with option)
1/8 parallel output is standard. 1/4 parallel output (Option 03) or
1/4 differential output (Option 08) can be selected exclusively.
It can be used as a data generator for evaluation of MUX
devices, WDM transmission equipment, high-speed buses, backplanes,
* 10cm Semirigid Cable Qty. 1
Apc 3.5(F) To Apc 3.5(F) Conversion Connector Qty. 4
Gpib Operation Manual - M Qty. 1
Anritsu MP1763B - Pulse PATTERN Generator features:
