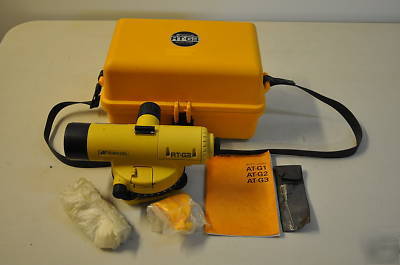

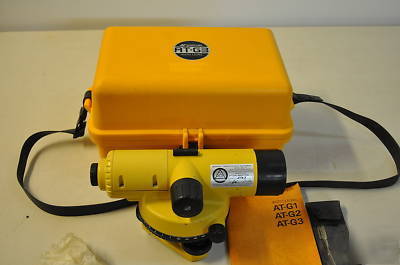

Topcon automatic level model at-G3 with case #100099

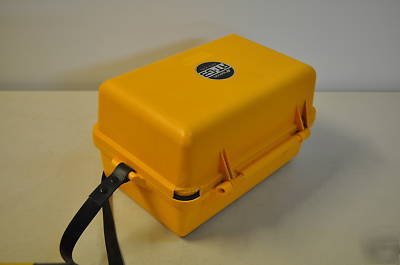

Topcon Precision 30 Power Engineers, Surveyors Automatic Level model AT-G3, accessories, manual and the case. Professional calibration 2-15-2010.1290.00 current price#100099 - case is chipped as shown 30x Magnification, 1.5 mm accuracy in 1 km double run leveling. Magnetically-damped compensator affords automatic leveling action. Waterproof telescope. Clampless fine horizontal adjustments. Sighting collimator. AT-G3 Telescope - Length: 9"; Image: Erect; Objective aperture: 1.6"; Magnification: 30x; Field of view (at 100): 1 30'; Resolving power: 3"; Minimum focus: 1.6'; Stadia ratio: 1:100. Horizontal Circle - Diameter: 4.7"; Reading: 1 . Compensator - Damping system: Magnetic; Setting accuracy: 0.3"; Range: 15'. Sensitivity - Circular level: 8'/2mm. Accuracy - 1 km dbl. run leveling: 1.5mm. Weight - Instrument: 4.1 lbs.; Case: 2.9 lbs. Tripod - 5/8" x 11
