Smith-blair inc. 226 full circle repair clamps

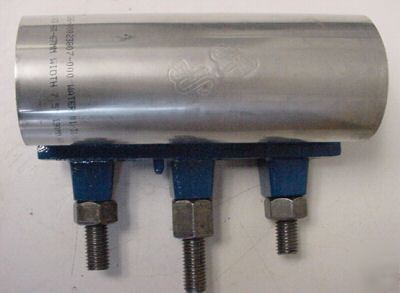

SMITH-BLAIR INC. 226 FULL CIRCLE REPAIR CLAMPS
Clamps provide a fast, economical means of repairing full
circumferential breaks, holes, cracks or other types of
damage to cast iron, steel, asbestos cement, copper,
aluminum, plastic, fiberglass and other types of pipe. The
clamps have a built-in O. D. range which enables each
clamp to fit several pipe outside diameters within its nominal
Full Circle Repair Clamps feature a lap type gasket with
molded tapered ends to provide efficient equalized sealing at
the lap joint on any pipe within the clamps range. The gasket
has a finely gridded surface with the resilience to easily
conform to irregularities on rough pipe surfaces or in pitted
areas, providing an effective seal all around the pipe.
A stainless steel bridge plate spans the opening of the lugs
and is bonded flush into the gasket to prevent wrinkling in the
lug area, providing an even gasket pressure at all points
around the full circumference of the pipe.
The band is made of stainless steel, selected to meet the
necessary corrosion resistance, flexibility and strength
Lugs are securely attached to the stainless steel band, and
have mutually supporting stabilizing fingers to permit
maximum torquing of the bolts. The lug design includes a
drop-in bolt feature that eliminates loose parts, saves time,
and aids installation under adverse conditions.
