> Nsk e 3000 series 90 angle spindle ras-151E
Nsk e 3000 series 90 angle spindle ras-151E
90 ANGLE SPINDLE RAS-151E 1.18" (30mm)
The E3000 Series is capable of up to 20,000 min-1(rpm) and employs a high-speed, ultra-quiet brushless motor.
-RAS-151E Spindle ; Collet 1/8" (CHK-3.175) : 1 pc. Collet Nut (K-265) : 1 pc. Wrench (12 x 14) : 2 pc. (22 x 27) : 1pc.

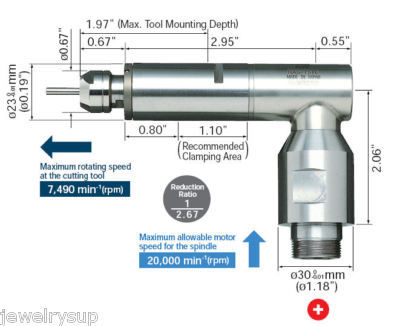

RAS-151E Spindle Specifications
90 Angle Type Spindle can use up to a 1/4"( 6.35 mm) collet and is suitable for installation where space restrictions exist..
Maximum allowable motor speed for the spindle 20,000 min-1(rpm)
Maximum rotating speed at the cutting tool 7,490 min-1(rpm)
Maximum Motor Speed 20,000 min-1(rpm)
The maximum motor speed 20,000 min-1(rpm) is realized by using high performance brushless motor and ceramic bearings.
