Cb-2 double hopper concrete u-cart plant


CB-2 Specifications as listed by U-Cart of America:
Space Required: 1000 square feet (allowing space for trailers)
Production: 15 cubic yards per hour, 4 minute cycle is standard
Dimensions: 30ft long (with auger down) x 7ft wide x 10ft tall (with auger up)
Auger Mixer: 9" x 13' Hydra Mix Mixing Auger backed with wear shoes
Mixing Chamber: Heavy-duty rubber auger trough
Mixer Motor: High speed, high torque and heavy-duty hydraulic motor
Auger Tilt: 3" x 36" hydraulic lift cylinder
Hopper Capacity: Two (2) separate 6 yard hoppers

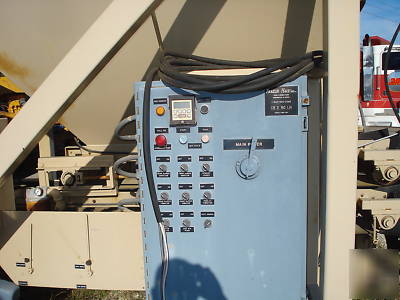

Low level cement indicator on the control panel
Aggregate hoppers constructed of 10 guage steel, continuous welded seams with a 4 x 4 steel tube main frame.
Cement: Calibrated speed adjustable
Aggregate: Calibrated slide gate adjustable
Water: Slight flow meter, 0-20 GPM
Operation: Hydraulic controls for ease of operation
Hydraulic Filter: 10 micron filter with differential pressure guage
Hydraulic Reservoir: Sight glass and easy-fill cap
Loading: Easily loaded with a front-end loader

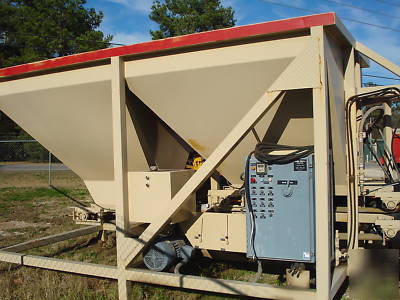

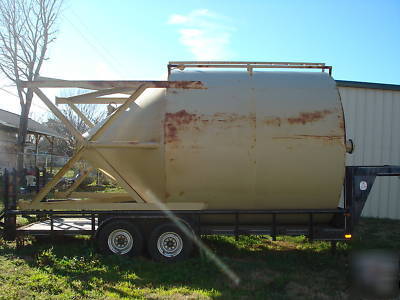

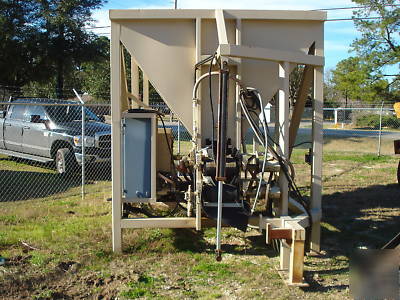

This versatile piece of concrete equipment is a wet auger system. The hoppers on this unit have a large capacity of 10 yards per hopper. This state of the art concrete blender can be used in pre-cast operations or trailer haul ready mix concrete. The versatility of this machine includes selecting your choice of mixes. There are two seperate hoppers for two separate mixes. The capacity of the dual hoppers is 6 yards per hopper. The material flow stays smooth with vibrators on each hopper and on the silo. Along with the easy to use control panel and the high quality design, U-CART has made this the best concrete blender available.

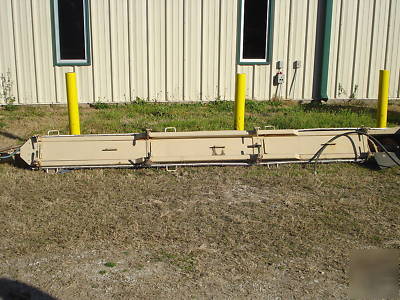

The heart of the wet auger mixing system is the 9" x 13' Hydra Mix mixing auger. This heavy duty auger, backed with wear shoes turns at a high rate of speed to assure proper mixing of the materials in the chamber.
*Additional pictures can be sent to you upon request.*
