Bird Electronic 4381 RF Power Analyst w/6 Elements and Coaxial Resistor
The ruggedly built, multifunction Model 4381 RF Power Analyst features a digital display, microprocessor-based operation, and simplified, push-button control. This wattmeter is well suited to telemetry, two-way communications, avionics and radar, as well as standard radio and television applications.
- Power: 100 mW to 10 kW with 20% over-range. Reads forward and reflected CW or FM power in watts or dBm, Peak Envelope Power or SSB/DSB and symmetrical AM in watts, and peak power for pulses as narrow as 0.8us Calculates SWR, return loss in dB and % modulation Stores peak and multi readings to facilitate adjustment of maximum and minimum signal levels Shock-resistant keyboard and range switches. RFI protection
- Power Range: 100mW to 10kW using Bird Plug-in Elements
- Frequency Range: 450 kHz to 2.7 GHz
- Insertion VSWR: with N connectors 1.05 max to 1000 MHz
- Power Readings: 5% of full scale CW 8% PEP
- Modulation: (CW power 1/3 or more of full scale) 5% (0-90%) 10% (90-100%)
- Usable Over-range: to 120% of scale (CW, PEP, SWR and Return Loss)
- Sampling Rate: 2 to 3 readings per second
- Display: 3 1/2 digit, 0.3 LED strobed
- Modulation Frequency: 25 to 10,000 Hz (audio)
- Pulse Parameters: (min.) Pulse width 0.8us (100-2700 MHz) 1.5us (26-99 MHz) 15us (2-25 MHz) Repetition Rate 25 PPS, and Duty Factor 1 x 10-4 min.
- Return Loss: 3% dB to corresponding SWR value

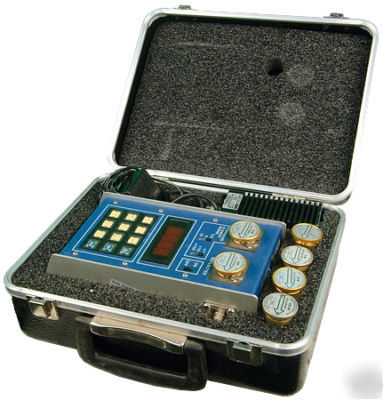

Transformer, coaxial Resistor model 8050 (50w, 50ohm) and plug-in elements seen in pictures are included.
RF Power Analyst w/6 Elements and Coaxial Resistor
