4 axis TB6560 2/4 phase stepper motor driver 12-36V 3A
4 Axis TB6560 2/4 Phase Stepper Motor Driver 12-36V 3A

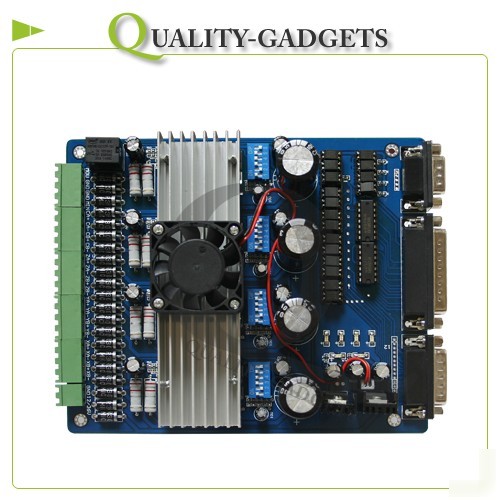

*NEW* 4 Axis TB6560AHQ Stepper Motor Driver Controller
*Attention: This driver is the 1.5A-3A version, it's specially designed for stepper motors with rated current from 1.5A to 3A, it's NOT compatible with stepper motors with rated current below 1.5A or above 3A!
If the rated current your stepper motors is below 1.5A, you can choose the 0.5A-2.5A version!
* Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop !
* Universal architecture - Supports most parallel software MACH3,KCAM4 etc!
*For compatibility with other softwares, please feel free to contact us!
* Power supply DC 12-36V (not included, please feel free to contact us if you need !)
*This driver get its power from the same unit as the steppers, it doesn't require a separate power source.
12-16V DC power supply for Nema 17 stepper motors
16-24V DC power supply for Nema 23 stepper motors
24-36V DC power supply for Nema 34 stepper motors
(High voltage will burn up the chips or stepper motors!!!)
Output current of the power supply can be calculated by the following expressions:
Output current = Rated current of your stepper motors * quantity + 2A
(For example, if you want to drive 3 * 3A Nema 23 stepper motors, theoretically 24V 11A DC power supply is recommended, but higher power such as 24V 15A also will be good.
If you are not sure about the selection of power supply, please feel free to contact us for help)
* The power output of 12V shall be applied to the radiator fan of 12V
* Driver output compatible with 2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
* Suitable for unipolar or bipolar stepper motors.
* Voltage regulated spindle speed controlled by parallel interface as function of supply voltage.
*NOTE: Please SHUT DOWN the power before you connect or plug the connectors to avoid burning up the board.
*NOTE: These external tools on the left and bottom of the following picture are only for exhibition, we don't have them to sell at the moment!
Electrical properties (ambient temperature Tj = 25 pm)
Double-pole constant flow PWM actuation output
2 or 4 phase, 4,6 or 8 lead stepper motors, 3A max.
* 1 x TB6560 Stepper Motor Driver 1.5A-3A
* For the MACH3 Sofeware, Please click here
* For the English User Manual, Please click here
