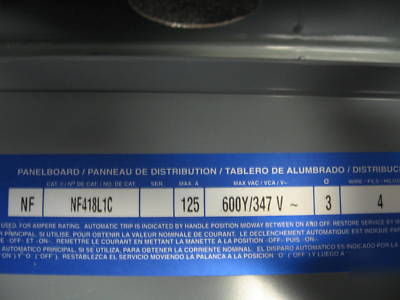

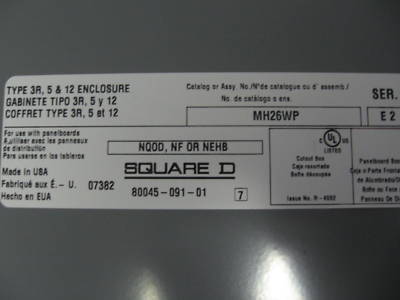

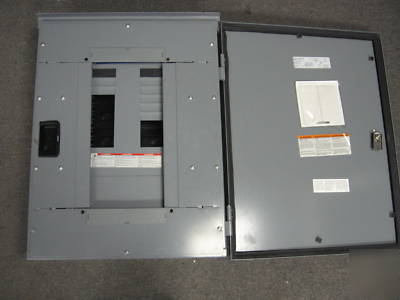

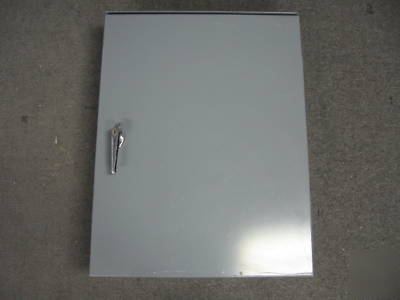

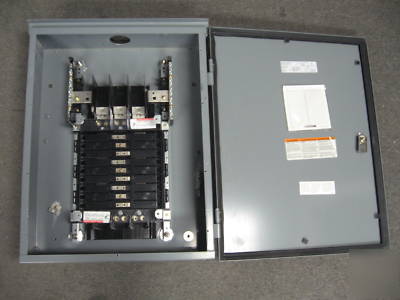

Square d panel 125 amp 480V NF418L1C main lug nema 3R
NICE USED SQUARE D ( NF418L1C ) 18 SPACE PANELBOARD 480V 125 AMP MAIN LUG ONLY. NEMA 3R RAIN TIGHT ENCLOSURE SOME KNOCKOUTS IN CAN. TAKES EDB STYLE BREAKERS ( UP TO 125 AMPS ). OTHER BREAKERS ARE AVAILABLE BUT NOT INCLUDED. CALL OR EMAIL IF THERE IS ANY QUESTIONS.
MAIN LUG; 480 VAC STAR/277 VAC; 125 AMPERE; EDB BRANCH BREAKER; BRANCH BREAKER MOUNTING BOLT ON; 18 MAXIMUM CIRCUIT(S); COPPER BUS MATERIAL; ENCLOSURE/TRIM SIZE 20 INCH W X 5-3/4 INCH D X 26 INCH H (NEMA 1), 20 INCH W X 6 1/2 INCH D X 26 INCH H (NEMA 3R/5/12); APPLICATION LIGHTING, DISTRIBUTION; NF MODEL
