Pcs 700 watt broadcast stereo fm transmitter package
Complete 700 Watt Stereo FM Transmitter Package
Complete 700 Watt Stereo FM Transmission System. Please note if you are existing station and do not require the coax or antenna please contact us for the price of the transmitter. System includes the following:

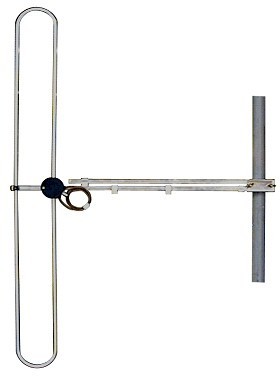

1 x MDR1 Broadband 800W Folded Dipole Antenna (works on any frequency between 88-108MHz) No tuning required
1 x PCS 700W Stereo Transmitter
http:// /components/com_virtuemart/shop_image/product/PCS_750_FM_Trans_486942687bb64.jpg

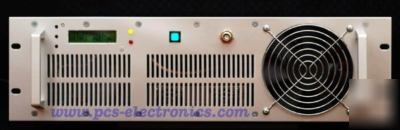

New enhanced version is out! CYBER MAX FM+ is the first from a line of rack mounted FM transmitter series for demanding broadcasters, operating in the whole band II, from 87.5 to 108 MHz (extended Japanese band can be ordered as well). This unit in large 2H 19" rack enclosure contains mains power supply and offers plenty of power (40W, 100W, 150W, 300W, 350W, 500W & 700W). Two large 80x80mm cooling fans with protection mesh will take care of any excessive heat easily. Transmitter consists of a stereo encoder with pre-emphasis circuit, active low-pass filter, our professional series PLL synthesizer, wideband no-tune RF stage with temp protection, good output RF filter and optional RDS and/or DSP processor. You can select the performance range (model A/B/C/D/E) that is most suitable for your budget. Unit is rugged and made for 24/7/365 operation, each comes with a wide-angle high contrast backlit LCD display. In our opinion the best quality/price ratio possible.
This unit can give up to 45W (40W model), 175W (150W model), close to 350W (300W model) close to 380W (350W model) close to 700W (500W model) and close to 800W (700W model)clean RF power, but this is not recommended for long term operation (10-15W, 40, 150W, 300W, 350W, 500W is typical) .
- Output power: 40W/100W/150W/300W/350W/500W/700w depending on the model, adjustable internally
