Onyx pressure isolator ring & barksdale dual set switch

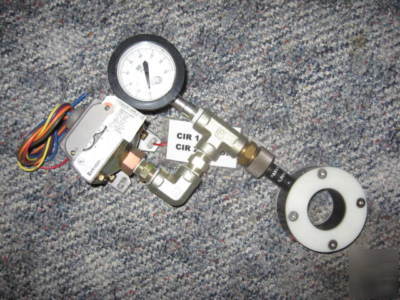

Here is a NEW ONYX Pressure Isolator Ring With Barksdale Switch
#1 Isolator Ring # 160-0200-13-06-42, 2" Center Hole, 4" Outside Diameter, 1 3/4" Thick
See website for additional specifications: http:// /Pressure_Sensors/iso%20ring%20verbage.pdf
#2 3D Instruments Gauge # 25502-45C11, 0 to 160 PSI
#3 Barksdale Type 4 Dual Setpoint Dialmatic Pressure Switch
Adjustable Range - 1.5 to 150 PSI, Proof Pressure - 300 PSI
Tagged - CIR 1 10 PSI, CIR 2 80 PSI
14" Total Height, 7" Total Width, 4 1/4" Total Thickness
The Onyx Isolator Ring can be used in a variety of industries such as chemical, food & beverage, mining, pulp & paper and waste water treatment. Typical applications include: Pressure measurement of slurries, corrosives and difficult fluids. Tank Level Indication. Monitor pressure on long distance pipe lines to detect line breaks. Measure the output pressure of a pump. Send a signal to stop a pump or open a by-pass valve.
