> New sensortronics 65016-3K 3000LB double end load cell

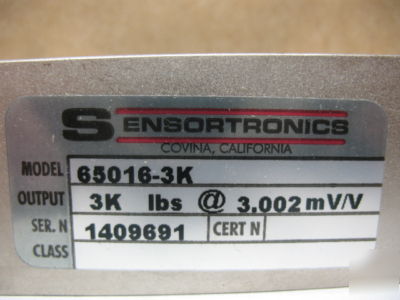

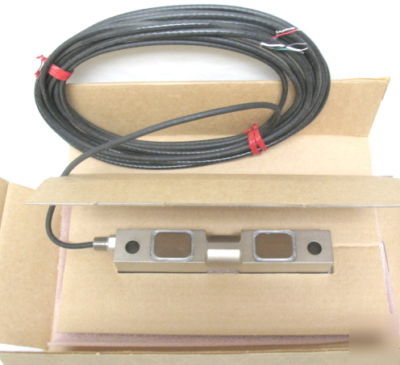

New sensortronics 65016-3K 3000LB double end load cell
* Operating Temp. 0-150 DegF
* Thermal Zero Shift < 0.0015%fs/DegF
* Thermal Span Shift,< 0.0008%fs/DegF
* Maximum Excitation 15 Vac or Vdc
* Non-Repeatability < 0.01%fs
* Output Resistance 700 Ohms
* Insulation Res>1000 MOhms @ 50 VDC
* Wiring Code (+Excitation: Red, -Excitation: Black, +Output: Green, -Output: White)
Please Note: All returns are subject to a 15% restocking fee.
