Iotech MICRO488/p miniature serial/ieee 488 controller

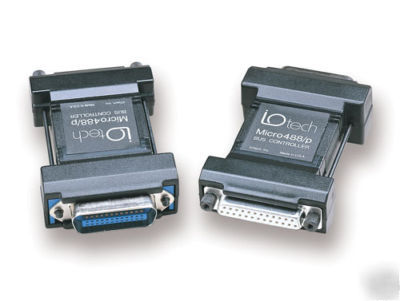

iOtech Micro488/p Miniature Serial/IEEE 488 Controller
A value of more than 500$ + taxes MSRP
* 1 X iOtech Micro488/p controller well packed in ESD bag & bubbles.
* Please remember item is used and not brand new but, it's in excellent condition w/normal wear & tear.
* Does not include any other documentation, accessories, cables or software.
* Smallest serial to IEEE 488 controller available
* Controls up to eight IEEE 488 instruments
* Programmed with concise ASCII commands
* Requires no external power supply powered from the computer s serial port
* Features standard DB25 serial and IEEE 488 connectors
* Enables remote control of IEEE 488 instruments
* Easily connects to notebook PC
Not much larger than a standard IEEE 488 connector, IOtech's Micro488/p is the smallest serial to IEEE 488 controller on the market. Nonetheless, it features an on-board microcontroller, permitting it to interpret commands received on its serial port and to control as many as eight IEEE 488 instruments. Moreover, because the Micro488/p derives its power from the host computer s serial port, it requires no external power connection.
Because the Micro488/p s firmware converts commands received on its serial port into IEEE 488 protocol, it does not require that the host computer run special software. The host computer must simply have the ability to send and receive ASCII data via its serial port.

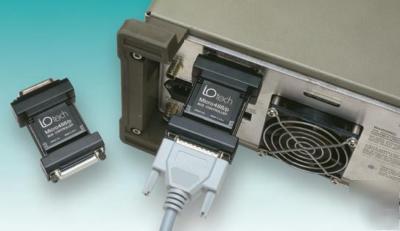

The Micro488/p attaches directly to the IEEE connector on the back of an instrument, eliminating the need for an additional IEEE cable. To control multiple instruments, you need only connect the instruments with standard IEEE cables and attach the Micro488/p to an open connector on any of the cables.
* Electrical Characteristics: RS 232
* Duplex: Full with echo/no-echo
* Baud Rates: 300, 1200, 2400, 4800, 9600, and 19200, set automatically upon the
receipt of a carriage return from the host computer
* Terminator: On Transmit, software configurable as LF, CR, LF-CR, or CR-LF; On
* Handshaking: Supports Clear To Send (CTS), Request To Send (RTS), and XON/
XOFF, software configurable
* Serial I/O Buffers: 120-character input buffer
* Connector: Accepts 25-pin Sub-D male (DB25P)
* Controller Subsets: C1, C2, C3, C4, and C28
* Terminator: Programmable for LF, CR, LF-CR, CR-LF, and EOI
* Connector: Plugs directly into a standard IEEE 488 female receptacle, either directly
on an instrument or on a cable
* Power: Draws less than 5 mA from the DTR or DSR serial lines on the host
* Environment: 0 to 50 C; 0 to 90% RH, non-condensing
* Dimensions: 95 mm W x 58 mm D x 25 mm H (3.7 x 2.3 x 0.9 )
Datasheet: http:// /PDFs/specs/micro488p_data.pdf
Manual: http:// /PDFs/manuals/micro488p.pdf
