Advantest R4131D microwave spectrum analyzer 3.5GHZ

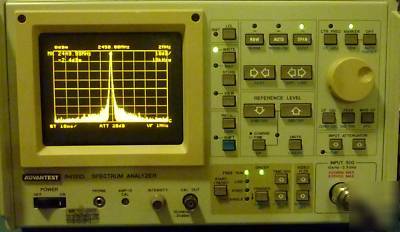

This unit is in good working condition. You can see from the photos that it's still pretty accurate, but it hasn't been calibrated in a long time. If you are doing wireless development it's indispensible, as it will cover every ISM band up to 2.4GHz. Great for HAMs, Wifi Site Survey (not too heavy to carry at 22lbs), or tuning up your Satellite Dish. Includes a PDF manual.
Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket Photobucket
Note - these specs are not guaranteed, they are only for reference.
Description Spectrum Analyzer 10KHz to 3.5GHz
Frequency span is 4 GHz to 50 kHz
Level data resolution by a marker 0.05 dB
Frequency Range 10KHz to 3.5GHz
Dynamic Range -116dBm to +20dBm
Resolution Bandwidth 1kHz to 1MHz
The R4131D covers a bandwidth as wide as 10kHz to 3500 kHz and is controlled by a microcomputer. This analyzer features easy confirmation of all measuring conditions.
The panel of the R4131D enables its three major functions to be independent of each other, and its layout makes for excellent operability. In addition, the resolution band, sweep time and input attenuator values are set automatically by its AUTO feature.
Quasi Peak Value Measurement Function
Waveform Can Be Saved In Memory
Occupied Bandwidth Measurement
Video Signal Modulation Analysis
