> New spectrum analyzer- emi probe set,h/ e/z near field
New spectrum analyzer- emi probe set,h/ e/z near field

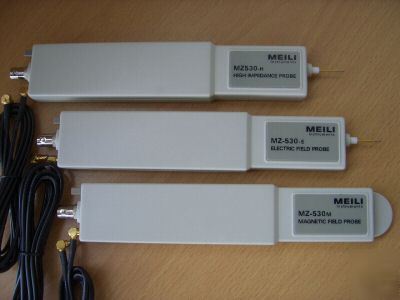

"EMI NEAR FIELD SNIFFER PROBE SET"
EMI PRE-COMPLIANCE TESTING DURING PRODUCT DEVELOPMENT
E / H FIELDS & HIGH IMPEDANCE 3 PROBES INCLUDED !!!
BEST COST-PERFORMANCE RATIO !!!
APPLICALBE FOR SPECTRUM ANALYZER MODELS : SM5011, SM5010
. Probes form a EMI pre-compliance test system in associate with applicable Spectrum Analyzer ( SM5010,SM5011 );
. EMI pre-compliance testing prior to third party testing;
. High sensitivity with built-in preamplifier covers the Frequency Range 0.1MHz to 1050MHz;
. DC Power source from batteries or supplied from Spectrum Analyzer - SM5010, SM5011;
. Best for checking the hot spot of radiation from PCB / measured device / equipment, shielding / screening effect or direct measurement by high impedance probe;
. Frequency Range : 0.1MHz to 1000MHz;
. Output Connector : BNC female;
. Input capacitance : 2pF ( high impedance probe );
. DC input voltage : 20V max.;
. Supply voltage : 6V DC ( 4 X AA size batteries not included ) or from SM5010, SM5011via DC cable;
. Probe dimensions : 40 x 19 x 195mm ( WxDxL );
. Housing : Plastic external ( electrically shielded internally );
1 x Power supply cable to SM5010, SM5011 ;
If the item damaged upon received, please inform immediately with picture to me within 5 days. After the investigation, we decide to the replacement.
- We regret not accept Personal Check; US local Postal Order.
Don't hesitate to Ask if any inquiry.
