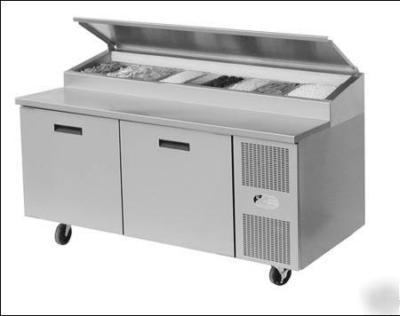

New randell 68" pizza prep table
CABINET EXTERIOR: Unit top and raised rail will be formed from four piece
20 gauge stainless steel with a 1-1/2 90 nosing/top turndown. The raised
refrigerated rail will be mechanically cooled and shall be provided with one
single opening to allow flexible pan configurations. The interior of the rail
will be constructed of three-piece construction with coved corners for easy
cleaning. Rail will hold 6 deep pans - not included. The pans will set on
an integral recessed pan ledge (1 at front and 3 at rear) making clean-up
easy without requiring the removable of any pan supports. On the 8383N,
8395N and 84111N, a removable mullion (below the intersection of the two
covers) allows the addition of one more 1/3 pan when removed. All units
provided with hinged removable stainless steel covers, fabricated from 20
gauge stainless steel, and supplied with a combination of covers which allow
maximum access to the pans. Unit bottom and exterior back are galvanized
metal. Exterior ends are finished in stainless steel. New hinged louver for
easier cleaning of the coil and draining the rail. Unit mounted on 6 (overall)
high swivel casters (front two with locks).
CABINET BASE INTERIOR: Interior floor, rear and top shall be anodized aluminum.
Base interior ends and door openings shall be thermoformed high impact
ABS. Each section will be provided with (1) removable interior epoxy-coated
wire shelf. The base shall be foamed in place polyurethane insulation with a
DOORS: Stainless steel front with easy to grasp recessed handles. Doors
mounted on heavy duty stainless steel concealed type hinges with pivot pin
in nylon bushing. Door interior is deep drawn thermoformed high impact ABS
with press-fit replaceable magnetic gaskets, designed for long life and easy
maintenance. Doors are foamed in place polyurethane insulation.
REFRIGERATION SYSTEM: The system will utilize R-404a refrigerant and be
provided with a hot gas condensate evaporation system. Dual refrigeration
system with independent controls for the base and the rail. The base will have
a blower coil with a dedicated metering device and solenoid valve allowing
the thermostatic control to independently control the base temperature. The
raised mechanically cooled rail will be controlled utilizing an expansion valve
metering device with its own solenoid valve and thermostat. An on/off switch,
located directly behind the hinged louver, is provided as standard to allow the
rail to be shut off independently of the base. A pressure control is provided to
monitor the dual systems performance.
Meets 1998 NSF/ANSI Standard 7,41 F Product Temperature Requirements
Recessed Wrapped Coldwall Rail with Exclusive Separate
Temperature Controls & Expansion Valve for Base and Rail
Exclusive Press Fit Magnetic Removable Gaskets
Separate Dual Control System for Rail & Base Allows
Shutting Rail Off at Night for Up to 60% Energy Savings
Condensing unit with Hot Gas Condensate Evaporator
New Hinged Louver for panel for easy access to drain gate
valve, rail temperature control and cleaning of condenser coil
Exclusive rail drain for easy clean-up
