26801802 | jet 8 speed vertical milling machine

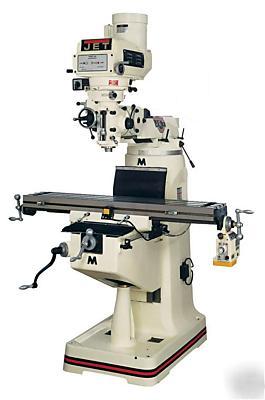

26801802 | Jet 8 Speed Vertical Milling Machine
* Superior meehanite cast iron.
* High precision class 7 and spindle bearings.
* One-shot lubricator for long and cross ways.
* 3-stage power downfeed with automatic stop.
* Double locks on table and knee.
* Turret head tilts 90 L or R and 45 forward and back.
* Large 3-3/8 chrome quill.
* Size of table 9 x 42
* Cross travel (Y) .... 12
* Knee travel (Z) .. 16
* Quill travel (Z) .. 5
* Long travel (X) ... 30
* Spindle taper R8
* Number of spindle speeds 8
* Range of spindle speeds . 80-2,720 RPM
* Max. distance spindle to table .... 17-1/2
* Max. distance spindle to column ... 19
* Motor .. . 2 HP
* Voltage (Prewired 230V) .. 230V, 1
* Weight .. 2,200 lbs.
* One-shot lubrication system.
The manufacturer is WMH Tool Group
The manufacturers item number is 690089
We offer 1 year warranty on parts and 90 day warranty on electrical.
