Keithley 237 high voltage source measure unit meter

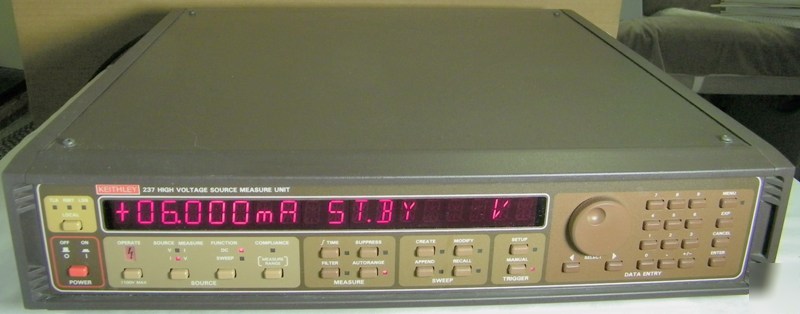

KEITHLEY 237 High Voltage Source-Measure Unit Meter
Model: KEITHLEY 237 High Voltage Source Measurement Unit Meter
Calibration: If need be, this unit could be calibrated at an additional cost of ONLY $150 (no data) and 10 days extra delivery time.
This item is USED & Working. It is in great cosmetic condition. This is a genuine, original part. We offer 30 days warranty and 7 days ROR from receipt of goods.
Qty-1: KEITHLEY 237 High Voltage Source-Measure Unit
Qty-1: KEITHLEY 237 High Voltage Source-Measure Unit - Service Manual
Qty-1: KEITHLEY 237 High Voltage Source-Measure Unit - Operator's Manual
Qty-1: KEITHLEY 237 Applications Manual QuickBASIC programs, Version 1.3 floppy disk, 3.5"
Qty-1: KEITHLEY 237 Source Measure Unit - Tutorial Hand Book
Qty-1: KEITHLEY 237 Source Measure Unit - Applications Manual
**THERE ARE NO ADDITIONAL ACCESSORIES, PROBES, POWER CORDS, CDs, OR MANUALS INCLUDED WITH THIS UNIT.
KEITHLEY 237 High Voltage Source Measurement Unit Meter
The 236, 237, and 238 Source-Measure Units (SMU) are fully programmable instruments, capable of sourcing and measuring voltage or current simultaneously.
These systems are really four instruments in one: voltage source, current source, voltage measure, and current measure.
These instruments address a wide variety of applications, including the characterization of semiconductor devices and the measurement of leakage currents or insulation resistance. They are particularly useful as source and measuring instruments in automated test equipment (ATE)
* Four instruments in one (voltage source, voltage measure, current source, current measure)
* 10fA, 10 V measurement sensitivity
* 1100V source and measure (237 only)
* Standard and custom sweep capability including pulse
* 1000 source/measurements per second
* Four quadrant source operation
* Internal 1000-reading memory
