Graco texspray gm 1030 paint / texture sprayer

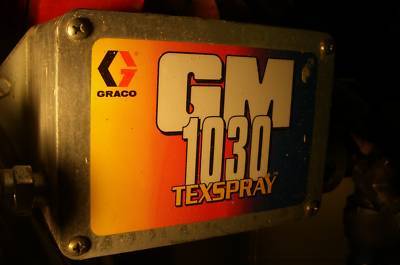

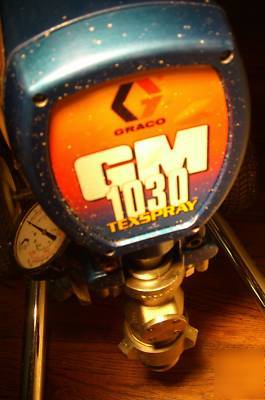

Graco TexSpray GM 1030 Paint/Texture Sprayer
(Stock Photo: Hoses, Inlet Tube & Gun Not Included w/Actual Unit)

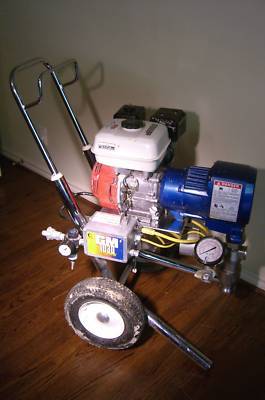

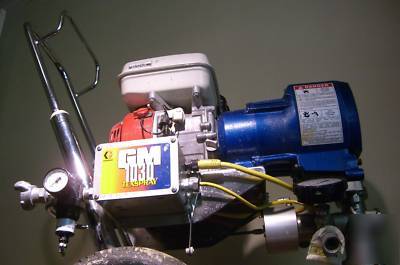

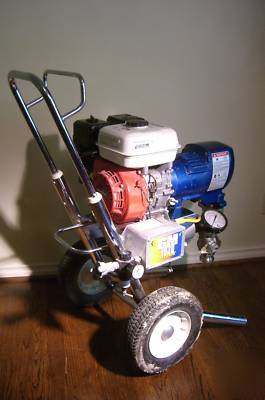

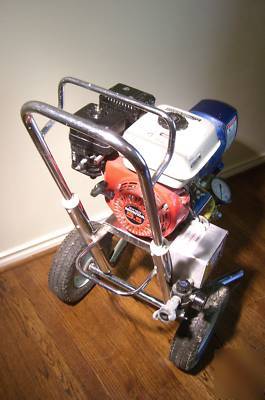

This item is in excellent working condition. It has some cosmetic proof of being used (some dried paint/texture overspray on unit) but all functioning parts are in excellent working condition. Unit turns on, idles, and performs flawlessly. Only what is pictured in the actual photos is what is for sale (hoses, inlet tube & gun not included).
Professional Application Equipment for Interior & Exterior Textures
If you've been waiting for a compact, high volume, easy to use texture sprayer, you don't have to wait any longer. Graco introduces the new TEXSPRAY GM 1030. It easily sprays common interior gypsum based wall and ceiling textures sold in dry mix or pre-mixed form as well as common exterior textures such as acrylic/elastomerics sold in pre-mixed form. Sprayable materials are smooth to heavily aggregated with silica sand, perlite, vermiculite and polystyrene in fine, medium, coarse and extra coarse grades.
But here's the best part. Not only is the TEXSPRAY GM 1030 an outstanding texture unit, but an accessory "quick change" pump automatically converts it to a GM 3012 airless sprayer. So you can airless spray primers, sealers, paints and smooth elastomerics all with the same unit. This allows you to airless spray smooth base coats with the GM 3012 then easily "quick change" back to a TEXSPRAY GM 1030 for applying textured topcoat finishes.
* High output- sprays texture from 3/4 to 3 gallons per minute - completely adjustable

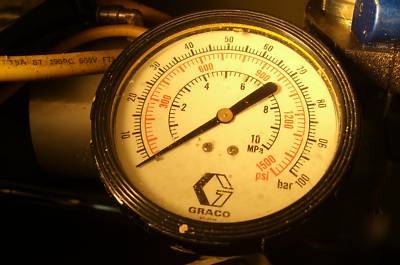

* High pressure - Sprays from 100 to 1000 psi

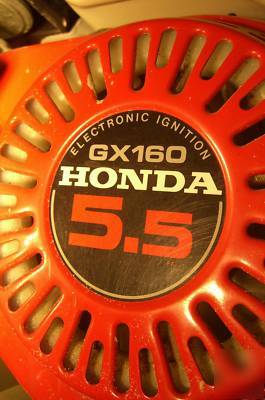

* Compact, lightweight design - only 150 lbs. with Honda 5 HP engine
* Patent pending "Soft StartTM" spray control
* Balanced pump and hose design provides smooth flow
* Unique extra-large "flow-thru" piston pump design and patent pending "Bounce
* Hard chrome over stainless steel rod & cylinder with poly packings
* Quick knock-down pump inlet
* Patent pending texture spray gun with built-in air and fluid controls and light trigger pull with lock
* Patent pending "Easy SprayTM" controls
* Patent pending "Fine FinishTM" texture spray discs deliver a "fan" spray pattern (round pattern available)
* Quick disconnect siphon hose for 5 to 55 gallon container.
Up to 3 times faster than Rotor/Stator type texture sprayers, up to 10 times faster than rollers and up to 12 times faster than hopper guns
Sprays heavy elastomerics with up to 200' of hose
Easy loading, unloading and maneuvering on job sites. Eliminates cumbersome trailer and truck mounted systems. Easy start, long life engine.
Quick shut-off and pressure relief ensures a "soft start" of texture spray at trigger pull, eliminating the "blast of material" common with other texture sprayers
Virtually eliminates spray pulsing which causes uneven coverage
Spray textures in high volumes. The "Bounce Seal" is always moving so texture aggregate doesn't build up in pump, minimizing downtime.
Offers you the longest life with abrasive materials. Plus, its corrosion resistant.
Quick clean-out if large lumps of texture clog the inlet
Gun controls the on/off spray and hose fill functions without troublesome electrical wires common in Rotor/Stator systems. "Touch-up" and "blending-in" are easier than with pole guns.
The off, prime and spray switches are easy to use and provide quick start-up/clean-up with no maintenance
SST dual orifice discs are reversible for longer life, provide high quality finish and up to 3' wide spray fans, virtually eliminating narrow fan "lap marks"
Easy drum or pail changeover eliminates using hoppers and lifting pump out of containers. Also assists in easy clean-up and clog removal.
Simple "quick change" pump capability converts texture sprayer to an airless sprayer, saving you the cost of purchasing a $5,000 sprayer
Use virtually half the air as with competitive air-operated units, saving you compressor costs

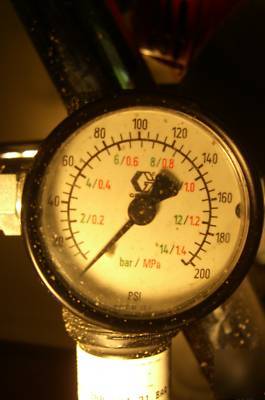

* Minimum gas compressor recommendations: elastomerics (25 cfm @ 90 psi [15 hp]); simulated acoustics (15 cfm @ 60 psi [8 hp]); splatter coat (10 cfm @ 40 psi [5 hp])
Here is a link for the manual for this GM 1030 Sprayer:
http://wwwd.graco.com/Distributors/DLibrary.nsf/Files/308269/$file/308269n.pdf
