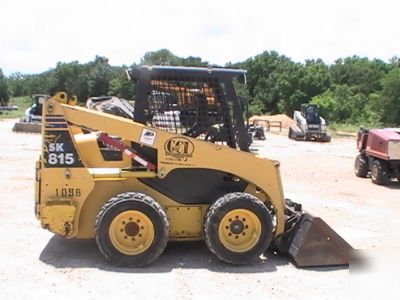

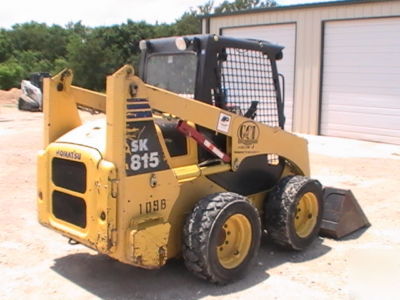

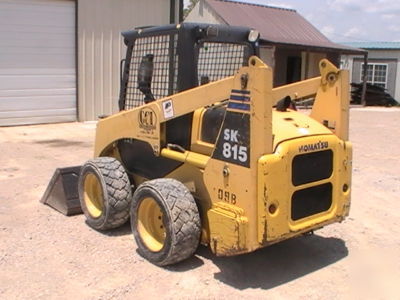

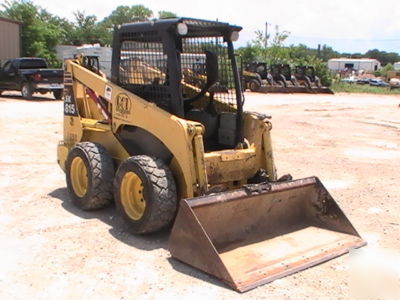

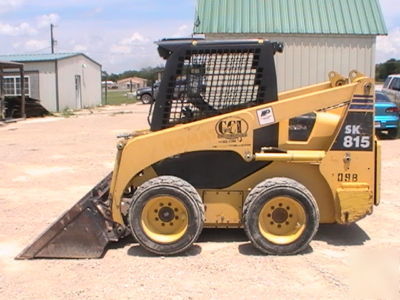

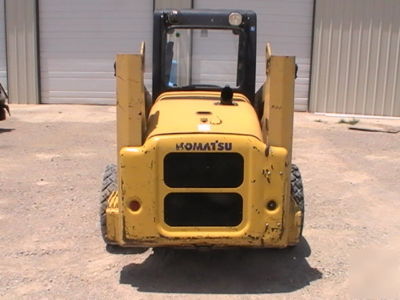

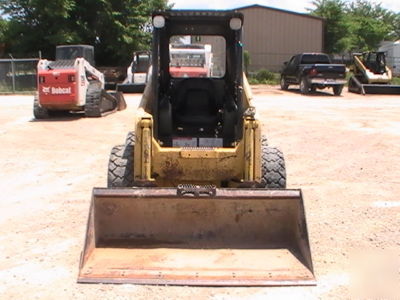

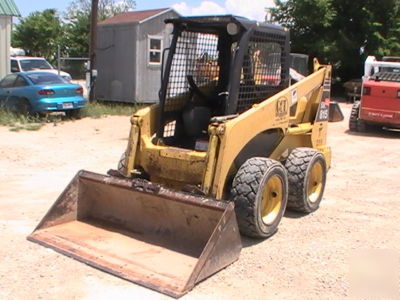

2003 komatsu SK815 skid steer loader
This is a great running machine, it starts easy and runs strong!

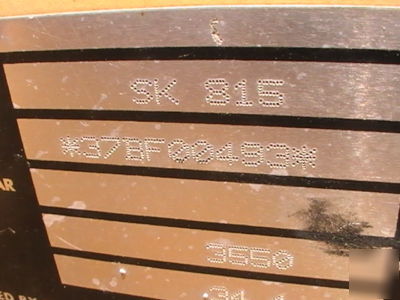

KOMATSU SK815-5 SKID STEER LOADER
A. LENGTH WITH BUCKET 11.4 ft in 3470 mm
C. HEIGHT TO TOP OF CAB 6.4 ft in 1950 mm
D. WHEELBASE 3.4 ft in 1050 mm
E. GROUND CLEARANCE 8.3 in 210 mm
F. LENGTH W/O BUCKET 6.7 ft in 2050 mm
G. CLEARANCE AT MAX LIFT AND DUMP 6.9 ft in 2105 mm
H. REACH AT MAX LIFT AND DUMP 24.2 in 615 mm
COOLING SYSTEM FLUID CAPACITY 2.1 gal 8 L
ENGINE OIL FLUID CAPACITY 2.1 gal 8 L
HYDRAULIC SYSTEM FLUID CAPACITY 10 gal 38 L
CHAIN BOX FLUID CAPACITY - EACH SIDE 8.2 gal 31 L
OPERATING SPEED 6.5 mph 10.5 km/h
ALTERNATOR SUPPLIED AMPERAGE 40 amps
OPERATING LOAD RATING 1554.3 lb 705 kg
TIPPING LOAD 3086.5 lb 1400 kg
BREAKOUT FORCE 3355.4 lb 1522 kg
BUCKET CAPACITY 0.56 yd3 0.43 m3
PUMP FLOW CAPACITY 16.4 gal/min 62 L/min
RELIEF VALVE PRESSURE 2770 psi 19098.5 kPa
LENGTH WITH BUCKET 11.4 ft in 3470 mm
LENGTH W/O BUCKET 6.7 ft in 2050 mm
HEIGHT TO TOP OF CAB 6.4 ft in 1950 mm
CLEARANCE AT MAX LIFT AND DUMP 6.9 ft in 2105 mm
GROUND CLEARANCE 8.3 in 210 mm
REACH AT MAX LIFT AND DUMP 24.2 in 615 mm
TURNING RADIUS FROM CENTER - MACHINE REAR 64.8 in 1645 mm
TURNING RADIUS FROM CENTER - INC BUCKET 79 in 2006 mm
