Pro shot alpha laser and R8 spectra apache detector kit
ALPHA SLOPE MATCHING ROTARY LASER
Slope Match, 2000' Range & 2 YR. WARRANTY

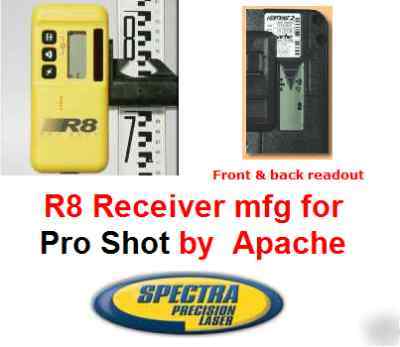

'STROBE REJECTION' DUAL SIDED R8 DETECTOR INCLUDED ~ Front & back readout
R8 manufactured by Apache a Spectra Precision / Trimble Navigation Ltd. Company
Bubble Vial Kit Standard Equipment on the R8
The best clamp is included - Patented reversible mounting jaws - Vise like grip on all sizes and shapes of rods, including round and oval.
"NEW" THE ALPHA NOW COMES WITH THE R8 LASER DETECTOR
A STROBE REJECTION DUAL SIDED DETECTOR ~ Front and back
LCD Displays - 11 channels for instant easy to see grade information.

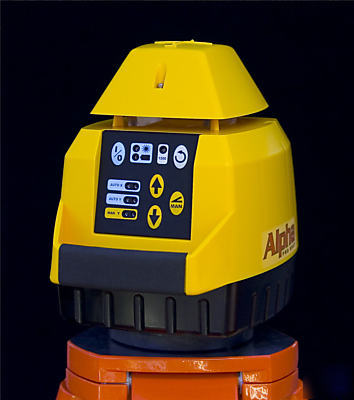

Alpha Fully Automatic Leveling Laser
Alpha Spreadsheet Comparison (pdf)
The Pro Shot Alpha is designed for concrete and general contractors working on large commercial or municipal sites. Electronic servo leveling means all you do is turn the unit
on and watch it drive to level. The Alpha also offers manual slope matching.
Range: 2000 foot diameter (610m) with R8 laser receiver
Rotational Coverage: 360 degrees
Accuracy: 10 Arc Seconds (.060 inch per 100 feet, 1.5mm per 30m)
Grade Capability: Slope Matching, Cross Axis Self Levels
Elevation Alert: Prevents errors if laser is disturbed
Leveling Method: Electronic sensors / Servo motor driven
Rotating Beam: 670nm class II
Rotation speed: 600, 1200 rpm.
Power: 100 hours on 4C alkaline batteries. 65 Hours NiMH Rechargeable batteries (optional)
Environment: Water and dust resistant. IP56
R8 Detector is Waterproof and Dustproof - 100% to IP67 standard - Dunk it, scrub it, hose it off - it can take it.
2-Year Warranty - If it breaks within 2 years - we will fix or replace it - "No Excuses"!
Alpha Fully Automatic Self Leveling Laser Kit
Laser, R8 Receiver with Rod Clamp, Alkaline Batteries and Hard Shell Carry Case
Pro Shot Long Range Laser, Apache R8 Lighting2 Strobe Rejection Detector, Hard Shell Carry Case and a 2 YEAR WARRANTY!
