Festo vacuum switch, type #vpev-1/8, part #150 261

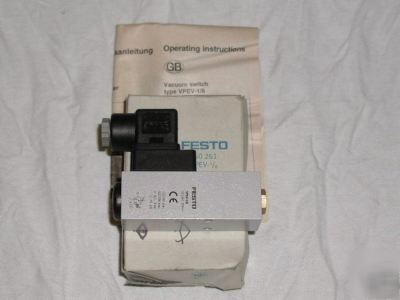

Festo Vacuum Switch Type VPEV-1/8
* The VPEV-1/8 has been designed for generating monitoring signals for controllers or systems using vacuum.
* The mechanical vacuum switch opens or closes an electrical circuit when a specified vacuum is reached at the vacuum connection.
* Pressure Setting Range for Vacuum: -0.2 bis -1 bar
* Reproducibility: 0.03 bar
* Hysteresis: Can be set (0.16..0.55 bar typ. at Ps -1.0 bar)
* Ambient Temperature: -20 C...+80 C
* Medium Temperature: -20 C...+80 C
* Max. Switching Frequency: 3.3 Hz (without vacuum connected)
* Up to 125 VAC: 5 A resistive, 3 A inductive
* Up to 250 VAC: 5 A resistive, 0.5 A inductive
* Up to 30 VDC: 5 A resistive, 3 A inductive
* Up to 125 VDC: 0.4 A resistive, 0.025 A inductive
* Housing: Powder coated aluminum
