> Dayton motorized single panel 48"damper 120/240V 52263
Dayton motorized single panel 48"damper 120/240V 52263

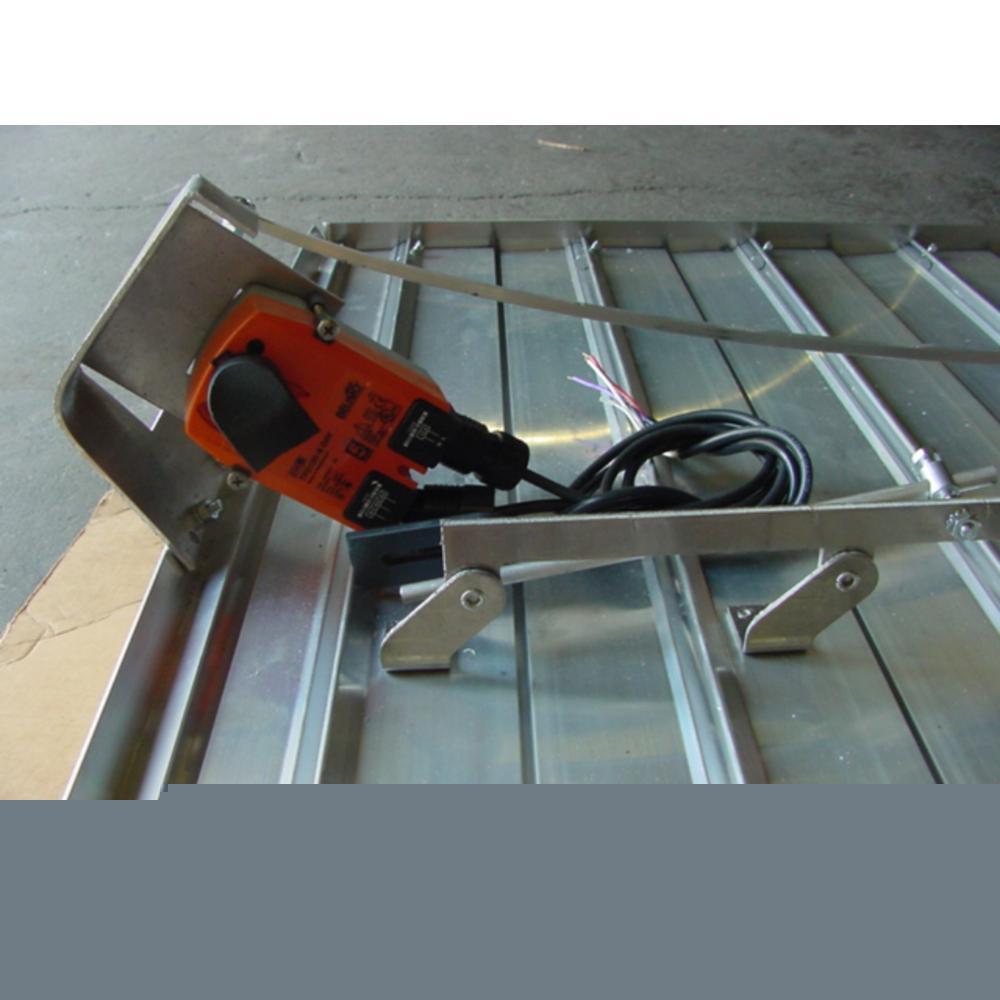

MOTORIZED DAMPER, SINGLE PANEL, POWER OPEN, SPRING RETURN, VOLTAGE:120-240, HERTZ:60, FREE AREA: 14.836 SQUARE-FT, MAX VELOCITY: 3500 FPM, EXTRUDED ALUMINUM, FRAME THICKNESS: 0.125 IN, BLADE THICKNESS: 0.080 IN, MOUNTING POSITION: HORIZONTAL OR VERTICAL, FOR USE WITH INTAKE OR EXHAUST APPLICATIONS, REQUIRES 12" HIGH ROOF CURB FOR ROOF MOUNT APPLICATIONS FOR 48" DIAMETER FAN, OVERALL SQUARE 51", FRAME OPENING REQUIRED 49", FRAME LENGTH 48", WEIGHT: 57 LB. **WH 5-ONE HAS DAMAGED ALL AROUND, WH 5-ONE SHUTTER DAMAGED AND DETACHED FROM OTHER SHUTTERS**
