Cnc laser cutting laser engraver machine--jcut-1280
THE LASER MACHINE MADE IN CHINA

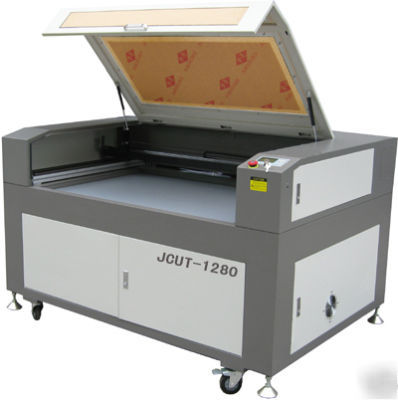

JCUT-1280 laser cutting machine and laser engraving machine (47.2'' X 31.4'')
The unique decelerate design make the mechanical system move stably and smoothly.
The edge of cutting is smooth and there is no sawtooth. The software adopts
continuous curve method to get faster cutting speed.
Supply with CE certificate, FDA
1) Engraving area: 1200 x800mm
2) Whole machine size: 1,720 x 1210x 1070mm
3) Laser power: 60w(optional 80W)
4)Cutting speed: 0 - 24,000mm/min
5) Resetting positioning accuracy: 0.1mm
6) Power supply: AC 110 - 220V 10%, 50 - 60Hz
8) Operating temperature: 0 - 45 C
9) Operating humidity: 8 - 95%
10) Minimum shaping character: English 1 x 1mm
11) Graphic format supported: BMP, HPGL, PLT, DST, DXP, and AI
13) Cooling mode: water-cooling and protection system
14)Auxiliary equipments :Exhaust-fans, air-exhaust pipe
15)Controlling software : DSP control system.
16)Compatible software: CorelDraw AutoCAD Photoshop
17)Laser- type: Sealed CO2 laser tube
Applicable materials: wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
Applicable industries: advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry
2.Optional equipment: Price(If you choose ,please pay for them)
1.Rise-down platform: adjust the height of table,enable the max thickness of material to reach 450mm
2.Rotary device: to engrave cylindrical material,such as pens,bottles
3.Chiller unit: coolen circular water(if you choose the machine 80w ,we suggest you choose this one)
4.Air pump: blow away the wast material and coolen proceed material surface
5.Auto focus: engrave uneven surface
6.Red pot point of position: realize simulation engraving,fast find the position
7.honey comb table: for engrave thin material
we will send a whole machine to you , also send some attachments to you free together with the machine , including software ,manual, pump, spanners , connection wires etc . when you get the machine , you can use it directly. i am sure you will use our machine easily and happily
the machine for one year,and the laser tube is for 100 days. we supply lifetime service online, you can contact us by email or msn or skype , we will reply to you in 24 hours , and will reply to you timely if by phone.
We can custom-made machine for you according to your demand too .
Any questions , do not hesitate to contact me !
