Ham radio antenna carolina windom
one antenna works on 8bands with atu,although it designed for 40m-10m inc warc,the windom antenna seems to radiate well on the 80m,6m as well.

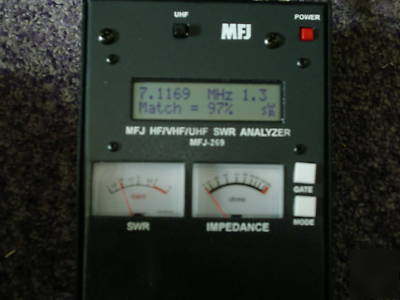

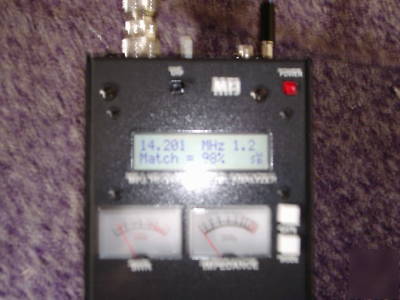

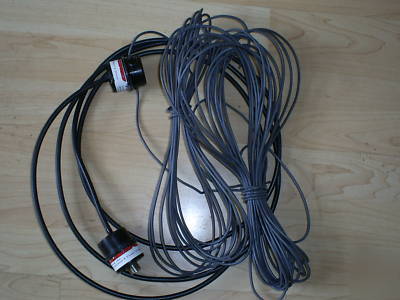

off center fed dipole (windom) 40 meters-10meters.66ft in length flattop,10ft vertical section,less power loss,low angle of radiation perfect for dx.this antenna is by far the best multiband dx antenna neighbour friendly. sandifordaerials,better by design sealed inside and out. the inside connections are coated with silicone paste.every aerial is tried and tested send your signal to the world.
40m - 10m (Inc WARC) will tune 80m,6m with pretty good results.
* Matching: Balun/Line isolator
* Install: (15ft) above ground
5ft each end can be droped down to leave 56ft flattop.
The size of this antenna makes it ideal for many gardens and its DX potential will ad at least an S-point to your signal on most occasions. The secret is in the vertical section which offers excellent low angle radiation. But short-haul contacts will be boosted. As the antenna covers all bands it can be used as the main system and it works equally well as inverted V or sloper. The offset feed system makes the domestic installation that much more convenient.
The off-center fed CAROLINA WINDOM provides outstanding performance on all bands. This includes all the WARC bands, 30, 17,15,12 meters.
An alternative to expensive beams and towers
The CAROLINA WINDOM is ideal for those of you who do not use a tower and beam. It's also ideal for those who want a high performance antenna to augment their beam's coverage by adding 80, 40, 30,20, 17,15,12,10 AND 6 meters.
Low Angle, Vertical Radiation Pattern
The CAROLINA WINDOM'S radiation pattern is an unusual combination of horizontal and vertical lobes. This accounts for the excellent performance of this antenna system. Tests have shown that the CAROLINA WINDOM will out perform conventional antennas under similar conditions.
Easily beats G5RV, Dipoles, and trap antennas.
This fact has been confirmed by six product reviews, DX'peditions and a world record. The CAROLINA WINDOM has always received excellent marks. One review, in WorldRadio, confirms the outstanding performance of the CAROLINA WINDOM in a head-to-head comparison with a G5RV manufactured by another company. That reviewer found the difference to be around 10 dB, band-for-band. You must remember that the G5RV develops gain on several bands above 80 meters, and the CAROLINA WINDOM still outperformed it on every band.
It's not the OLD Windom. It's new, It's hot! Actually, it's not a Windom at all.
Some early versions of the Windom antenna used balanced twin lead in combination with a 4:1 balun. Those designs did not have balanced feed, but used balanced twin-lead feedline. Windoms fed with balanced line do not take advantage of the 'Vertically Enhanced Radiation Technique .'
Enhanced Vertical Radiation due to the inverted Vertical Radiator
The 'Dedicated Matching Unit' used to match the transmission line (coax feed line) to the antenna is a special design that enhances transmission line radiation. Part of the coaxial feedline serves not only as the transmission line (or feed line) but, simultaneously, serves as a vertical radiator. The wire portion of the antenna is the counterpoise for the vertical radiator. The result is an inverted-vertical antenna located high in the air and free of ground losses. It is a very efficient vertical antenna.
The combination of horizontal high angle radiation and vertical low angle radiation accounts for the excellent performance of the CAROLINA WINDOM both locally and long haul (DX).
The LINE ISOLATOR effectively separates the transmission line portion of the cable from the radiating portion. Vertical radiator length is predictable and repeatable.
A 'Line Isolator' is placed in series with the transmission line at a critical point. The Line Isolator provides a large inductive reactance at the insertion point (the action is similar to an RF choke). This effectively eliminates transmission line radiation beyond the point where it is inserted into the transmission line.
So, this is the secret of the CAROLINA WINDOM'S remarkable performance. It's the vertical radiator. It is not some sort of 'black magic' or 'hype' as some speculate, its performance is quite real and explainable.
