Ftdi usb to serial uart interface board for avr pic

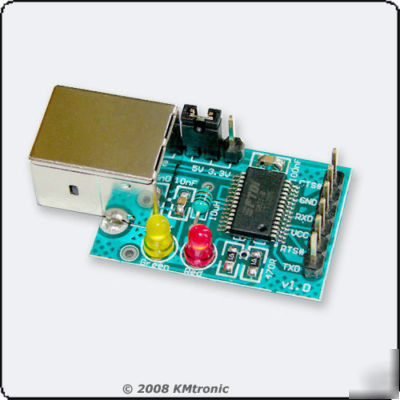

USB to serial UART interface Board with FT232R
This converter can be used on any Microcontroller - PIC, Atmel or other which has TTL serial communications.
Converter provides two way serial communications signal conversion between the TTL (Transistor Transistor Logic)
output to and from a personal computer USB port using virtual serial COM port.
Works with 5V and 3.3V Logic Interface. The 3 pin jumper selects 5V and 3.3V.
USB to RS232 / RS422 / RS485 Converters
Upgrading Legacy Peripherals to USB
Cellular and Cordless Phone USB data transfer cables and interfaces
Interfacing MCU / PLD / FPGA based designs to USB
USB Audio and Low Bandwidth Video data transfer
The drivers listed above are all available to download for free from the FTDI website.
Various 3rd Party Drivers are also available for various other operating systems - see the FTDI website for details.
When you want to use the FTDI board you have to connect the RX to the TX of the device, and the TX of the FTDI board to the RX of the device.
The only way to make the FTDI board works, the lines between the device (microcontroller) and the FTDI board must be crossed.
