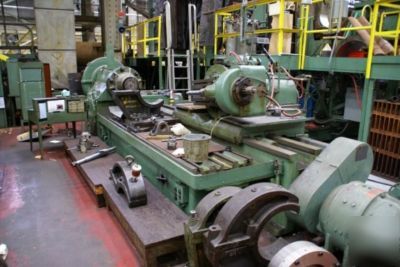

Fitchburg horizontal spline & pinion hobber
Fitchburg Horizontal Spline & Pinion Hobber
Max. DP .............................. 1-1/4"
Max. OD Hob .......................... 9"
Max. Outside Dia. of Workpiece ....... 32"
Min. Diameter of Workpiece ........... 0"
Max. Face (Length of Cut) ............ 82"
Max. Distance Between Centers ........ 120"
Index Wheel Diameter ................. 37"
Hole in Spindle ...................... 6"
Approx. Floor Space .................. 108" x 288"
Approx. Machine Weight ............... 40,000 Lbs.
