New mil-spec beckman instruments helipot resistor $600
Additional questions? They can often be answered by visiting our FAQ section . You can visit us on the internet at e-liquidators.com

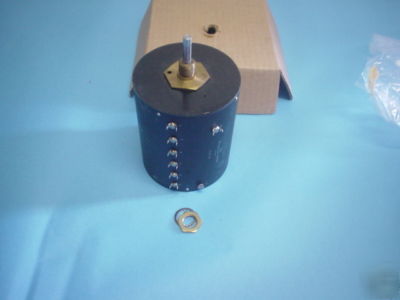

Mil-Spec Beckman Instruments Helipot Resistor NEW! $600

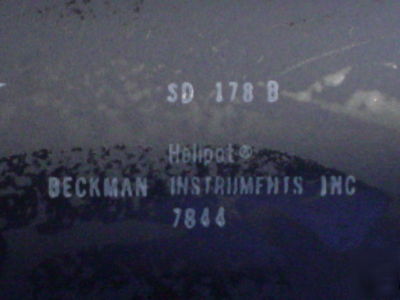

This is a Brand New Beckman Instruments Helipot part # SD-178B, original cost was over $600.00
ELECTRICAL RESISTANCE PER SECTION: 1.000 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT: -2.0 TO 2.0 SINGLE SECTION
FUNCTION CONFORMITY PER SECTION: SINGLE SECTION INDEPENDENT LINEARITY
FUNCTION CHARACTERISTIC PER SECTION: SINGLE SECTION LINEAR
FUNCTION CONFORMITY TOLERANCE PER SECTION: -0.10 TO 0.10 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS: 15.0 FREE AIR SINGLE SECTION
FIXED TAP QUANTITY PER SECTION: 11 SINGLE SECTION
TAP LOCATION TOLERANCE PER SECTION: -1.0 TO 1.0 DEG ANGULAR ROTATION SINGLE SECTION
EFFECTIVE ELECTRICAL ROTATION IN DEG ANGULAR ROTATION: 9000.0 NOMINAL
TERMINAL TYPE AND QUANTITY: 14 TAB, SOLDER LUG
