Hp 8671B option H04 synthesized cw generator 2-18 ghz

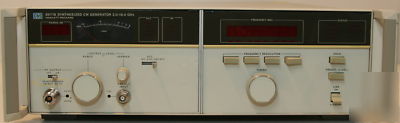

HP 8671B Option H04 Synthesized CW Generator 2.0 to 18.0 GHz
Fully Tested and Working Perfectly
The 8671B Synthesized CW Generator is a streamlined 2.0 to 18.0 GHz Synthesized CW Generator. It meets all the requirements for a clean CW source. It features synthesized output with 1, 2 or 3 kHz resolution, 128 dB dynamic range, +8 dBm calibrated output power, full programmability, low phase noise, plus low spurious signals.
For applications requiring a microwave local oscillator, the HP 8671B is the ideal solution. A simple, uncluttered, easy to use generator, the HP 8671B provides accurate, clean signals to upconvert and downconvert signals into the desired measurement frequency range.
Note: the 8671B's specifications for this range (high power level, etc.) are essentially the same as that of the highly desirable 8672A with Option 008 except for no AM/FM Modulation.
* Frequency Range: 2.0 to 18.0 GHz (18.6 GHz Overrange)
* Output Level: +8 to -120 dBm
* Time Base: Internal 10 MHz or External 5 or 10 MHz
* Source Impedance: 50 Ohms Nominal
* Option H04: Brings the 20-30 MHz Loop to the Outside to Enable Outputting it to External Equipment
Frequency Bands and Resolution:
* Band 1: 2.0 to 6.2 GHz, 1 kHz
* Band 2: 6.2 to 12.4 GHz, 2 kHz
* Band 3: 12.4 to 18.0 GHz, 3 kHz
* Flatness (0 dBm Range): 0.75 dB, Band 1; 1.00 dB, Band 2; 1.25 dB, Band 3
HP 8671B Operating and Service Manual
