Watts 3/4" flow measurement valve csm 61T M1

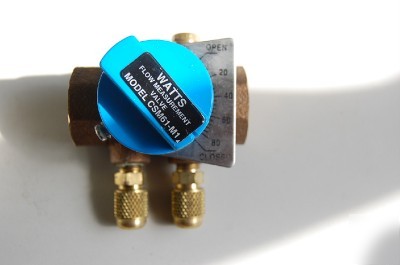

WATTS 3/4" Flow Measurement Valve CSM 61T M1
Watts Series CSM-61 M1 T 3/4", Flow Measurement Valve (0856738)Watts Series CSM-61T (threaded) 3/4", Flow Measurement Valves. Used for hot or chilled water units for system balancing/flow measurement. Applications: Fan coil units, unit ventilators, water source heat pumps, finned radiation, reheat coils, unit heaters, small domestic water lines, convectors and small residential boilers/circuits. Materials of Construction -Housing/Body: Bronze, Packing Material: PTFE, Pressure Taps: Brass 1/4" SAE 45; Flare, Seats: Carbon/Glass filled PTFE, Drain Plug: Brass. Threaded valves 1/2" to 3" Working Temperature 250F Maximum working pressure 300 psi. Solder valves 1/2" to 1" Working Temperature 200 Maximum working pressure 100 psi
