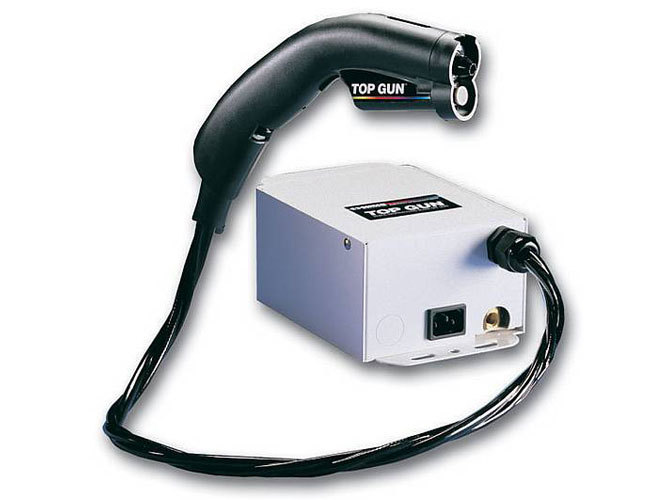

Simco 4005105 top gun iii ionizing air gun w/ 7' hose
Start Saving with the Simco 4005105 Top Gun III Ionizing Air Gun. SIMCO s Top Gun III is a high performance ionizing air gun designed for a wide variety of industrial applications. It features a light-touch trigger, making it comfortable even for extended use. All functionality is built into the gun, including a flow control valve, a balance adjustment for calibration, and two-level LED which indicates both power and ionization.
Start Saving with the Simco 4005105 Top Gun III Ionizing Air Gun. SIMCO s Top Gun III is a high performance ionizing air gun designed for a wide variety of industrial applications. Balanced to 0 15V, the Top Gun features high blow-off force and low air consumption to provide high-efficiency cleaning and maximum static charge decay. A filter at the exit of the gun ensures that the air is clean. The gun body is lightweight and durable. It features a light-touch trigger, making it comfortable even for extended use. All functionality is built into the gun, including a flow control valve, a balance adjustment for calibration, and two-level LED which indicates both power and ionization.
* Filter at the exit of the gun, ensures that the air contacting the surface is clean
* Lightweight with ergonomic design, designed for user comfort
* Flow control valve, airflow can be adjusted for the specific application
* Electrical activation of ionization and air flow, extends effectiveness of emitter with no maintenance
* Ionization indicator light LED, verfies that ionisation is present
* Electronically balanced ion output to 0 15V, protects sensitive components and assemblies
* Weight 0,8 kg incl. 3 metre cable
* Flow 68 l /min at 2 bar
* 130 l /min at 4 bar
* 210 l /min at 7 bar
* Blow-off Force 180 grams at 7 bar, 5 cm diameter target 7,5 cm from gun
* 1,3 seconds at 15 cm and 2 bar (1000 V to 100 V)
* 0,5 seconds at 5 cm and 4 bar (1000 V to 100 V)
* Gunbody: static dissipativ polycarbonate / ABS blend
* Gun hanger: stainless steel MHMW-PE
* Cable/hose Material: static dissipativ polyurethane 3 or 6 metre
* Operating temperature 0 to 40 C
* Ozone production 0,001 ppm, measured 450 mm from gun, operating at 1 bar
* 76 dB(A) at 2 bar input
* 89 dB(A) at 4 bar input
* 97 dB(A) at 7 bar input
* measured 600 mm from nozzle
* Filter 0,01 micron; replacement filters available
* 120 V AC, 50/60 Hz, 0.10 A
* 230 V AC, 50/60 Hz, 0.05 A
* Material powder-coated steel
* Maximum pressure 7 bar (clean dry air or Nitrogen) 1/8 NPT connector - female
* Medical manufacturing and packaging
* Precision parts assembly
* Particulate removal in optics
* Cleaning glass or molded parts prior to finishing
* Simco 4005105 Top Gun III Ionizing Air Gun
