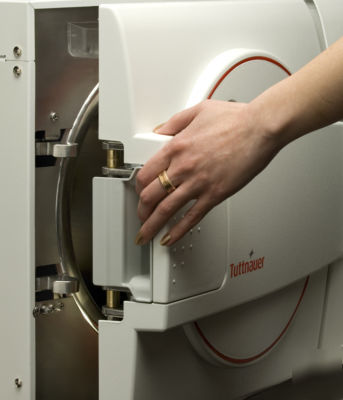

New tuttnauer ELARA11 pre & post vacuum autoclave
Elara 11 - Class B Pre and Post Vacuum Autoclave
The Elara 11 is designed for sterilization of wrapped, porous and hollow loads. The chamber volume is large, external dimensions are small, making it especially suitable for smaller clinics requiring a high turnover. The control system is smart and intuitive, easy to use and has a large memory for consistent and reliable performance.
* Short cycle and high volume pre and post vacuum pump for perfect class B sterilization results
* 316L grade stainless steel chamber and door with electro-polish finish
* A built-in steam generator provides steam and facilitates a standby steam mode
* The door closes smoothly and locks automatically
* Large 7.5 Gallon chamber within a small foot print. A perfect fit for standard 24 inch shelves or counters
* Provided with 5 stainless steel trays and can also hold cassettes
* Water filling from the front economizes on office space by eliminating the need to keep the top of the autoclave accessible
* A cycle will not start unless the door is properly locked
* An automated double locking safety device prevents the door from opening while the chamber is pressurized
* An automatic safety shut-off prevents overheating of the chamber
* The autoclave comes with safety pressure-release valves for the chamber and generator
This is a Great New Autoclave- We have personally been to Tuttnauer and trained on this unit. The Elara11 could be the answer to a lot of autoclaving needs in the Medical and Dental fields. In the past we have had a lot of people tell us they need the speed of a Statim but the Statim does not dry their loads properly. Plus, the Statim is not a Pre & Post vacuum autoclave. Well, the Elara11 has 5 trays versus the Statims 1 Cassette and your instruments come out dry in less time than the Statim. (We regulary see packs coming out of Statim Cassettes soak and wet after drying for a whole hour) Turn the Elara11 on when you come in in the morning and it will be ready to go in 15 minutes. It stays ready for 4 hours before going into sleep mode when not in use.
The Elara 11 also uses fresh distilled water for each cycle. So, you will use more water but the Elara 11 and your packs and pouches will stay cleaner. You do not use ChamberBrite in this autoclave so you save that expense. Also, you'r staff will not have to run that second cleaning cycle.
Your office will need a dedicated power line for this unit. We highly suggest a buck boost transformer be installed if your power is less than 214VAC or more than 235VAC on average.
You should have a Tuttnauer Service Tech in your area familiar with this unit before purchasing. At 148 pounds it is not easy to move around!!
11inches (280mm) x 19.8 inches (504mm)
6.7 inches 170mm x 0.8 inches (22mm) x 16.3 inches (442mm)
20.8 inches (530mm) x 17.4 inches (444mm) x 25.4 inches (645mm)
184 pounds (84kg) (actual device weight is 148 pounds)
The Elara 11 offers a total of 7 programs: 5 sterilization programs and 2 test programs: Bowie and Dick Test and Vacuum Test. The user can disable programs which allows for savings on validation costs.
Monitoring and Control Monitoring is essential for correct infection control. The Elara 11 uses advanced microprocessor technology for consistent, reliable performance. The control system is fully configurable and stores information from the 40 most recent cycles. A USB port enables the user to download and store cycle data. The LCD screen shows essential A built-in thermal printer that prints detailed cycle information is conveniently located near the control panel.
The control panel is easy to operate. The fully automated, menu-driven panel is consolidated into a 3 button keypad, allowing the user to easily operate the autoclave, browse programs and program the autoclave.
