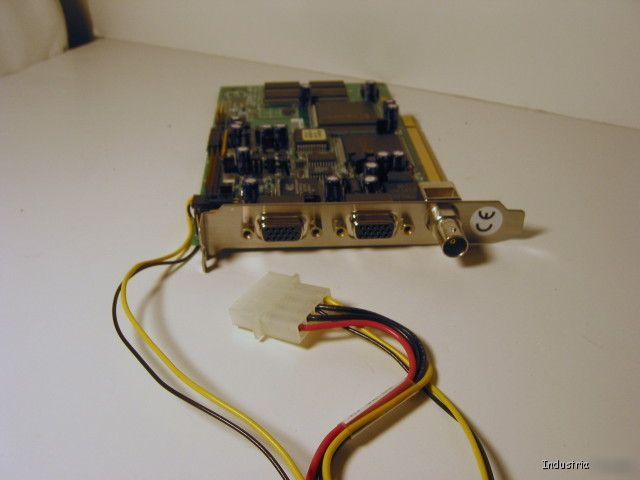

Cognex 8100M framegrabber 4 channel
Cognex 8100M Framegrabber 4 Channel
Cognex MVS-8100M - 4 Channel Framegrabber
Board is in perfect working condition.
The MVS-8100M is a monochrome vision system for applications requiring high-speed image transfer and display at low cost. High-quality grey-scale images from up to four multiplexed RS-170 or CCIR cameras can be captured, then transferred via pipelined processing. In order to achieve higher throughput, rapid reset cameras are supported (for high acquisition rates of rapidly moving parts), as are non-interlaced progressive scan cameras.
4.20" x 6.875" (106.7mm x 174.6mm)
166MHz Pentium class CPU or greater (MMX required PatMax software)
PCI- or AGP-based video display adaptor with at least 8MB of RAM, support for Direct Draw, and operating in minimum 256 color mode. AGP is preferred.
One open +5V/32-bit PCI expansion slot
Up to four multiplexed RS-170 or CCIR cameras
Supports rapid reset cameras
Full or half resolution acquisition
Supports external camera sync
DMA to PC memory in parallel with acquisition
High-speed opto-isolated trigger input
Opto-isolated accept/reject output
Dissipates approximately 27 watts
Operating temperature: 10 to 45 C
Humidity: 10 to 90%, non-condensing
4:1 MUX; rapid reset progressive
scan cameras; pipelined processing
