Hp agilent 8753C network analyzer 300KHZ to 3GHZ

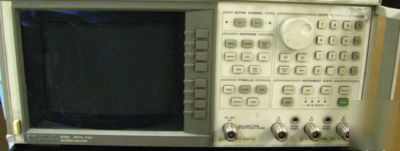

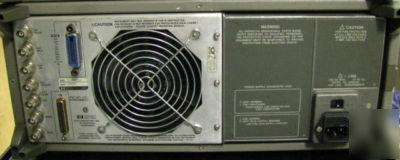

HP/AGILENT 8753C Network Analyzer
Network Analyzer with Option 006, 6 GHz Receiver
Option 010, Time Domain Capability
AND INCLUDES AGILENT 85047A, S-Parameter Test Set 300kHz-6GHz for 8753C, Calibrated
The HP 8753C network analyzer provides excellent RF network measurements for lab and production test areas. When combined with a test set, it provides a complete solution for characterizing linear behavior of either active or passive networks, devices, or components from 300 kHz to 3 GHz. With two independent display channels available, you can simultaneously measure and view the reflection and transmission characteristics of the device under test in overlay or split-screen format on the crisp color display. The easy-to-use softkey selection of measurement functions allows you to measure the magnitude, phase, or group delay characteristics of your device under test. THIS UNIT IS FULLY CALIBRATED.
* Integrated 1 Hz resolution synthesized source
* Direct save/recall to an external disk drive
* Execute complex test procedures with the test sequence function
* Group delay and deviation from linear phase
* 0.001 dB, 0.01 deg, 0.01 nanosec marker resolution
* Built-in accuracy enhancement
This unit just went through a full recertification and calibration by Hayes Labs; very clean unit!
FOR THE COMPLETE PDF SPEC. - EMAIL OR CALL
FOR MORE INFORMATION - CONTACT HEIDI at ****@USAnetronics.com OR CALL (***)-866-8801
