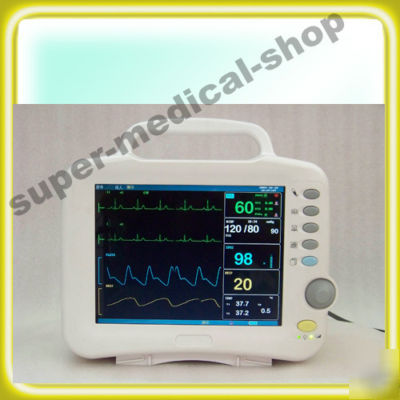

New icu patient monitor icu ecg, nibp, SPO2, pulse rate
Six Standard parameters: ECG,RESP,NIBP,SPO2,1_TEMP,PR/HR
1.20 Type Arrhythmic Analysis, Multi_Lead ECG Waveforms Display in Phase, Real time S_T segment analysis, pacemaker detection Drug calculation and titration table;
2. Efficient resistance to interference of defibrillator and electrosurgical cautery;
3. SPO2 can testing for 0.1% Weak;
4. RA-LL impedance Respiration;
6. OxyCRG DyNamic View Display;
8. Networking capacity and nurse_calling system;
9. Options of printing, IBP, VGA and EtCO2;
10. UP to 4 hours working capacity of built_in rechargeable battery;
11. 10.4"high resolution color TFT LCD display;
12. Large volume of tabular and graphic trends information storage and easy to recall;
13. Anti-ESU, anti- defibrillator;
14. Capture dynamic waveforms.
5-lead ECG cable ( including RESP)
Lead Mode: 5 Leads ( R, L, F, N, C or RA, LA, LL, RL,V)
Lead selection: I, II, III, avR, avL, avF, V,
Lead mode: 3 Leads ( R, L, F or RA, LA, LL)
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, auto
Accuracy : 1% or 1bpm,which great
Differential Input Impedance: > 5 M
Electrode offset potential: 300mV
Baseline Recovery: < 3 S After Defi.
ECG Signal Range: 8 m V ( Vp-p )
Calibration Signal: 1 (mV p-p), Accuracy: 5%
ST Segment Monitoring Range: Measure and Alarm -2.0 ~ +2.0 mV
Type: ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2,
PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC
Method: Impedance between R-F(RA-LL)
Differential Input Impedance: >2.5 M
Measuring Impedance Range: 0.3~5.0
Base line Impedance Range: 0 2.5 K
Measuring Interval in AUTO Mode: 1, 2, 3, 4, 5, 10, 15, 30, 60, 90, 120, 180, 240,480 (Min)
Pulse Rate Range: 40 ~ 240 bpm
Accuracy Pressure Maximum Mean error: 5mmHg
Maximum Standard deviation: 8mmHg
Actualization interval: about 1 Sec.
Measuring and Alarm Range: 20~300bpm
Measuring and Alarm Range: 0 ~ 50 C
Average Time Constant:<10 Sec.
Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2
CVP/RAP/LAP/ICP: -10 ~ 40 mmHg
Accuracy : 2% or 1mmHg, which great
Damage during installation is not considered defect or warranty. All items carry a 1 year manufacturers warranty.
Return Policy: Return is acceptable in 7 days of receipt.
Return item must be in original conditions, include package.
