> Okuma 23.6" x 60" cnc turning center - lathe - 4 axis
Okuma 23.6" x 60" cnc turning center - lathe - 4 axis
LOOKING AT ALL REASONABLE OFFERS! FREE LOADING ONTO TRUCK!!!
Note: Although the machine runs fine with it's current OSP 3000 CNC controller, for extra cost we can offer to you this machine retrofitted with the latest Okuma OSP P200 CNC control. The retrofit will include a new spindle motor, new axis motors and drives, new electrical panels, new operators station. Call for details. You will save hundreds of thousands of dollars over the cost of a new machine like this one and cut delivery time to a fraction of new. The retrofit will be done by an experienced Okuma rebuilder that as been given the EXCLUSIVE rights by Okuma to retrofit the incredible OSP P200 CNC control. Questions: Call Ted Barrie Jr. or Ted Barrie Sr. (any day of the week or weekends; evenings ok also....) Phone: (***)-754-9200 Ted Sr. cell phone (***)-491-5405
Motor Driven with 60 HP (45 KW) Spindle Drive Motor. 5 HP (3.7KW)
Z-Axis Upper Turret Motor. 3 HP (2.2 KW) Lower Turret Motor. X-Axis 2
HP (1.5 KW) Upper Turret Motor. 1 HP (0.75 KW) Lower Turret Motor. MD
Hydraulic Oil Pump Motor. MD Coolant System.
EQUIPPED WITH: OSP-3000 CNC Controls with full CRT.
Maximum machining Diameter 15.75"
X Axis Travel (Upper / Lower) 11.22" + 6.10"
Maximum Turning Length 60" (both turrets)
Hole through actuator: 2.95" (subject to verification by purchaser)
Floor space: 240" x 92" x 86" high

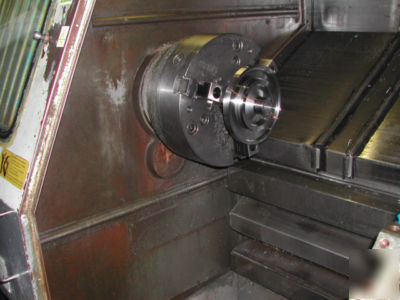

" 16" dia. SMW Quick Adjust 3-Jaw power chuck (Just added brand new at a cost of approx. $10,000.00)

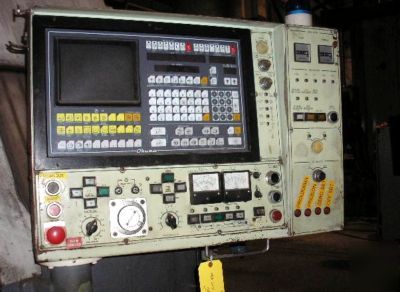

" Control OSP 3000 with full CRT and MPG.
" Books, Manuals, full enclosure, sheet metal guards, necessary motors and controls
