3 phase sequence rotation indicator tester meter tool

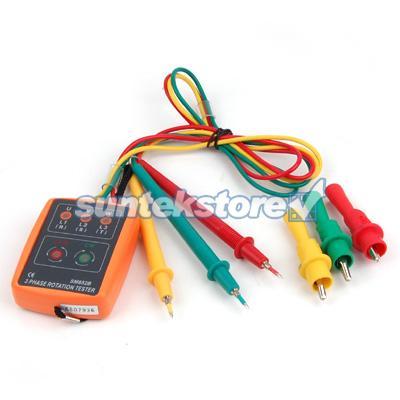

3 Phase Sequence Rotation Indicator Tester Meter Tool
This SM-852B phase indicator is designed for checking the presence of open phrase and prase sequence through the designated LEDs and an audible buzzer sound at the same time.
* Check the presence of open phase and identify 3 phase sequence condition
* Fast and accurate measurement
* Efficient, effective, reliable, easy and safe to use
* One Unit with 2 Functions: Open phase indication & Phase rotation indication
* Indicate phase orientation (clockwise or counter-clockwise) and whether each of three phases is live
* With indications via LEDs and audible buzzer sound at the same time
* Ensure the object being tested is not damaged from incorrect wiring
* Portable, compact design and meet the electrical safety standards IEC-348
* Operation Voltage: 60V - 600V AC, three phase
* Limit Support Voltage: 2000 V/min(impulse voltage 4000V)
* Operating Frequency Range: 20 Hz - 400 Hz
* Limit Time for Continuous Use: 60 minutes maximum at 60V AC, 4 minutes maximum at 600V AC
* Test Leads: Double insulation
* Length of Test Leads: Approx. 80cm long
* Item Dimension: Approx. 85 x 64 x 23mm
* 1x Main unit with test leads
* 1x Instruction manual (english)
* 1x Zippered blue carrying case
